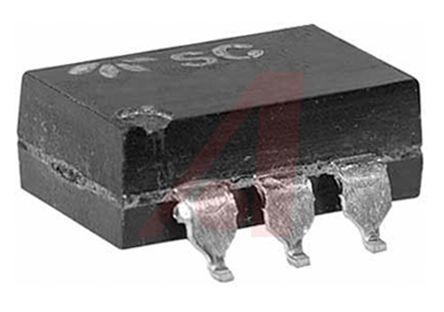

Teledyne ±1.25 (Bi-Directional) A, 2.5 A Solid State Relay, AC, Bi-Directional, Surface Mount FET

SC60-10 Teledyne ±1.25 (Bi-Directional) A, 2.5 A Solid State Relay, AC, Bi-Directional, Surface Mount FET
Teledyne

Product Information

Dimensions:
9.91 x 6.35 x 4.45mm
Relay Type:
Solid State Relay
Maximum Load Voltage:
±60 (Bi-Directional) V dc, 60 V dc
Output Device:
FET
Load Voltage Range:
±60 (Bi-Directional) V dc, 60 V dc
Standards Met:
DSCC MIL-STD-790, ISO9002
Minimum Control Voltage:
1.1 V dc
Package Style:
DIP
Off State Leakage Current:
1 (Bi-Directional) μA, 2 μA
Switching Type:
AC, Bi-Directional
Terminal Type:
PCB Pin
Operating Temperature Range:
-40 → +85°C
Control Voltage Range:
1.1 → 1.5 V dc
Length:
9.91mm
Maximum Turn On Time:
4 ms
Special Features:
Floating Output, High Noise Immunity, Optical Isolation, Three Terminal Output
Maximum Load Current:
±1.25 (Bi-Directional) A, 2.5 A
Mounting Type:
Surface Mount
Depth:
6.35mm
Height:
4.45mm
Maximum Control Voltage:
1.5 V dc
Checking for live stock

This is ±1.25 (Bi-Directional) A 2.5 A Solid State Relay AC Bi-Directional Surface Mount FET manufactured by Teledyne. The manufacturer part number is SC60-10. The given dimensions of the product include 9.91 x 6.35 x 4.45mm. This is basically a solid state relay. While its maximum load voltage is ±60 (bi-directional) v dc, 60 v dc. Its output device includes fet. Its load voltage range is about ±60 (bi-directional) v dc, 60 v dc . The product complies with all safety standards, such as dscc mil-std-790, iso9002. Additionally, it has a minimum 1.1 v dc control voltage . Its package is of dip style . Additionally, its off state leakage current is 1 (bi-directional) μa, 2 μa . This product uses ac, bi-directional switching mechanism. The terminal is a pcb pin type. The product has -40 → +85°c of operating temperature range. Moreover, it has a typical 1.1 → 1.5 v dc control voltage range . Its accurate length is 9.91mm. The product has a maximum 4 ms turn on time . The product also provides special features, such as floating output, high noise immunity, optical isolation, three terminal output. It carries ±1.25 (bi-directional) a, 2.5 a maximum load current. The product is available in surface mount configuration. The product comes in 6.35mm depth. In addition, the height is 4.45mm. The product has a maximum 1.5 v dc control voltage .
