Teledyne 1 A DPDT Solid State Relay, DC, Surface Mount, 28 V dc Maximum Load

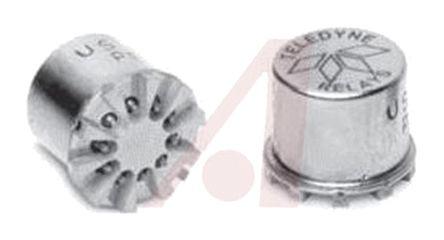

GRF342-12 Teledyne 1 A DPDT Solid State Relay, DC, Surface Mount, 28 V dc Maximum Load
Teledyne

Product Information

Dimensions:
9.53 (Dia.) x 8.13mm
Relay Type:
RF Relay
Capacitance:
0.4pF
Maximum Load Voltage:
28 V dc
Load Voltage Range:
28V dc
Package Style:
TO-5
Switching Type:
DC
Terminal Type:
PCB Pin
Operating Temperature Range:
-55 → +85°C
Control Voltage Range:
Maximum of 16 V dc
Contact Configuration:
DPDT
Length:
9.53mm
Maximum Turn On Time:
2 ms
Special Features:
Gold-Plated Precious Metal Alloy Contacts Ensure Reliable DC and RF Signal Switching, Low And Stable Insertion Loss, Robust to High Temperature Solder Reflow Environments, Unique Uniframe Design Provides High Magnetic Efficiency And Mechanical Rigidity
Maximum Load Current:
1 A
Mounting Type:
Surface Mount
Depth:
8.13mm
Maximum Control Voltage:
16 V dc
Number of Poles:
2
Minimum Load Voltage:
28 V dc
RoHs Compliant
Checking for live stock

This is 1 A DPDT Solid State Relay DC Surface Mount 28 V dc Maximum Load manufactured by Teledyne. The manufacturer part number is GRF342-12. The given dimensions of the product include 9.53 (dia.) x 8.13mm. This is basically a rf relay. It provides a 0.4pf of capacitance value. While its maximum load voltage is 28 v dc. Its load voltage range is about 28v dc . Its package is of to-5 style . This product uses dc switching mechanism. The terminal is a pcb pin type. The product has -55 → +85°c of operating temperature range. Moreover, it has a typical maximum of 16 v dc control voltage range . The contact is equipped with dpdt configuration. Its accurate length is 9.53mm. The product has a maximum 2 ms turn on time . The product also provides special features, such as gold-plated precious metal alloy contacts ensure reliable dc and rf signal switching, low and stable insertion loss, robust to high temperature solder reflow environments, unique uniframe design provides high magnetic efficiency and mechanical rigidity. It carries 1 a maximum load current. The product is available in surface mount configuration. The product comes in 8.13mm depth. The product has a maximum 16 v dc control voltage . It has equipped with 2 poles. It carries up to 28 v dc minimum load voltage.
