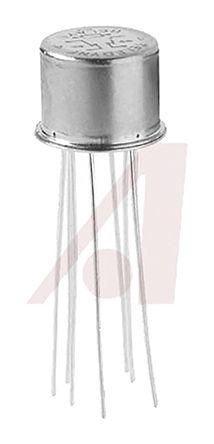

Teledyne 1 A DPDT Solid State Relay, Low Level, PCB Mount, 28 V dc, 125 V ac Maximum Load

712DY-12 Teledyne 1 A DPDT Solid State Relay, Low Level, PCB Mount, 28 V dc, 125 V ac Maximum Load
Teledyne

Product Information

Dimensions:
9.4 (Dia.) x 7.62mm
Relay Type:
RF Relay
Capacitance:
0.4pF
Maximum Load Voltage:
28 V dc, 125 V ac
Load Voltage Range:
Maximum of 125 V ac, 50 mV dc → 28 V dc
Package Style:
TO-5
Switching Type:
Low Level
Terminal Type:
PCB Pin
Minimum Load Current:
10 μA
Operating Temperature Range:
-55 → +85°C
Control Voltage Range:
Maximum of 16 V dc
Contact Configuration:
DPDT
Length:
9.4mm
Maximum Turn On Time:
4 ms
Special Features:
All Welded Construction, High Force/Mass Ratios for Resistance to Shock and Vibration
Maximum Load Current:
1 A
Mounting Type:
PCB Mount
Height:
7.62mm
Maximum Control Voltage:
16 V dc
Number of Poles:
2
Minimum Load Voltage:
50 mV dc
Checking for live stock

This is 1 A DPDT Solid State Relay Low Level PCB Mount 28 V dc 125 V ac Maximum Load manufactured by Teledyne. The manufacturer part number is 712DY-12. The given dimensions of the product include 9.4 (dia.) x 7.62mm. This is basically a rf relay. It provides a 0.4pf of capacitance value. While its maximum load voltage is 28 v dc, 125 v ac. Its load voltage range is about maximum of 125 v ac, 50 mv dc → 28 v dc . Its package is of to-5 style . This product uses low level switching mechanism. The terminal is a pcb pin type. The product has a minimum 10 μa load current . The product has -55 → +85°c of operating temperature range. Moreover, it has a typical maximum of 16 v dc control voltage range . The contact is equipped with dpdt configuration. Its accurate length is 9.4mm. The product has a maximum 4 ms turn on time . The product also provides special features, such as all welded construction, high force/mass ratios for resistance to shock and vibration. It carries 1 a maximum load current. The product is available in pcb mount configuration. In addition, the height is 7.62mm. The product has a maximum 16 v dc control voltage . It has equipped with 2 poles. It carries up to 50 mv dc minimum load voltage.
