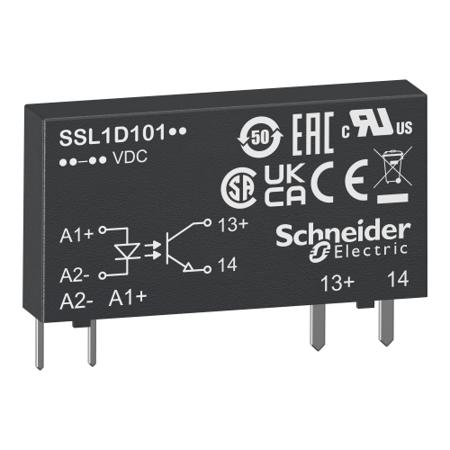

Schneider Electric 0.1 A SPNO Solid State Relay, DC Switching, PCB Mount MOSFET, 48 V dc Maximum Load

SSL1D101JD Schneider Electric 0.1 A SPNO Solid State Relay, DC Switching, PCB Mount MOSFET, 48 V dc Maximum Load
SSL1D101JD
Schneider Electric

Product Information

Dimensions:
28 x 5 x 15mm
Relay Type:
Single Phase
Capacitance:
1.5pF
Range:
Harmony Solid State Relays
Maximum Load Voltage:
48 V dc
Output Device:
MOSFET
Load Voltage Range:
1 → 48V dc
Standards Met:
CE, CSA, UL
Minimum Control Voltage:
3 V dc
Off State Leakage Current:
0.001 mA
Switching Type:
DC
Maximum Operating Temperature:
+80°C
Terminal Type:
PCB Pin
Control Voltage Range:
3 → 12 V dc
Operating Temperature Range:
-20 → +80°C
Minimum Load Current:
0.001 A
Contact Configuration:
SPST
Length:
28mm
Maximum Turn On Time:
0.02ms
Special Features:
Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals
Maximum Load Current:
0.1 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
PCB Mount
Series:
SSL
Depth:
5mm
Height:
15mm
Minimum Operating Temperature:
-20°C
Maximum Control Voltage:
12 V dc
Number of Poles:
1
Minimum Load Voltage:
1 V dc
Checking for live stock

This is 0.1 A SPNO Solid State Relay DC Switching PCB Mount MOSFET 48 V dc Maximum Load manufactured by Schneider Electric. The manufacturer part number is SSL1D101JD. The given dimensions of the product include 28 x 5 x 15mm. This is basically a single phase. It provides a 1.5pf of capacitance value. It features harmony solid state relays range. While its maximum load voltage is 48 v dc. Its output device includes mosfet. Its load voltage range is about 1 → 48v dc . The product complies with all safety standards, such as ce, csa, ul. Additionally, it has a minimum 3 v dc control voltage . Additionally, its off state leakage current is 0.001 ma . This product uses dc switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a pcb pin type. Moreover, it has a typical 3 → 12 v dc control voltage range . The product has -20 → +80°c of operating temperature range. The product has a minimum 0.001 a load current . The contact is equipped with spst configuration. Its accurate length is 28mm. The product has a maximum 0.02ms turn on time . The product also provides special features, such as built-in diode protection circuit & led indicator, mounted on universal ac/dc sockets, slim interface ssl relays with pcb terminals. It carries 0.1 a maximum load current. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in pcb mount configuration. The product ssl, is a highly preferred choice for users. The product comes in 5mm depth. In addition, the height is 15mm. Whereas, the minimum operating temperature of the product is -20°c. The product has a maximum 12 v dc control voltage . It has equipped with 1 poles. It carries up to 1 v dc minimum load voltage.

pdf icon
Zelio Selection Guide(Technical Reference)
pdf icon
Datasheet_SSL1D101JD(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
