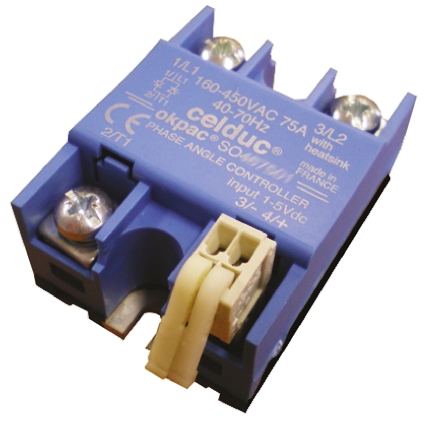

Celduc, SO367001, Thyristor Trigger Module, 40 → 70Hz, 4-Pin, 45 x 33.6 x 58.5mm

SO367001 Celduc, , Thyristor Trigger Module, 40 → 70Hz, 4-Pin, 45 x 33.6 x 58.5mm
Celduc

Product Information

Dimensions:
58.5 x 45 x 30mm
Relay Type:
Single Phase
Range:
SO3
Maximum Load Voltage:
450 V ac
Output Device:
Thyristor
Load Voltage Range:
160 → 450V
Standards Met:
CE, EAC
Minimum Control Voltage:
0 V dc
Off State Leakage Current:
2 mA
Switching Type:
Burst Fire Control
Maximum Operating Temperature:
+90°C
Terminal Type:
Screw
Operating Temperature Range:
-40 → +90°C
Control Voltage Range:
0 → 10 V
Length:
58.5mm
Maximum Turn On Time:
160ms
Special Features:
IP20 Protection By Flaps On Terminals, Yellow LED Visualization On The Input
Maximum Load Current:
75 A
Mounting Type:
Panel Mount
Series:
SO3
Depth:
30mm
Height:
58.5mm
Minimum Operating Temperature:
-40°C
Maximum Control Voltage:
10 V dc
Number of Poles:
1
Minimum Load Voltage:
160 V ac
RoHs Compliant
Checking for live stock

This is Thyristor Trigger Module 40 → 70Hz 4-Pin 45 x 33.6 x 58.5mm manufactured by Celduc. The manufacturer part number is SO367001. The given dimensions of the product include 58.5 x 45 x 30mm. This is basically a single phase. It features so3 range. While its maximum load voltage is 450 v ac. Its output device includes thyristor. Its load voltage range is about 160 → 450v . The product complies with all safety standards, such as ce, eac. Additionally, it has a minimum 0 v dc control voltage . Additionally, its off state leakage current is 2 ma . This product uses burst fire control switching mechanism. It has a maximum operating temperature of +90°c. The terminal is a screw type. The product has -40 → +90°c of operating temperature range. Moreover, it has a typical 0 → 10 v control voltage range . Its accurate length is 58.5mm. The product has a maximum 160ms turn on time . The product also provides special features, such as ip20 protection by flaps on terminals, yellow led visualization on the input. It carries 75 a maximum load current. The product is available in panel mount configuration. The product so3, is a highly preferred choice for users. The product comes in 30mm depth. In addition, the height is 58.5mm. Whereas, the minimum operating temperature of the product is -40°c. The product has a maximum 10 v dc control voltage . It has equipped with 1 poles. It carries up to 160 v ac minimum load voltage.
