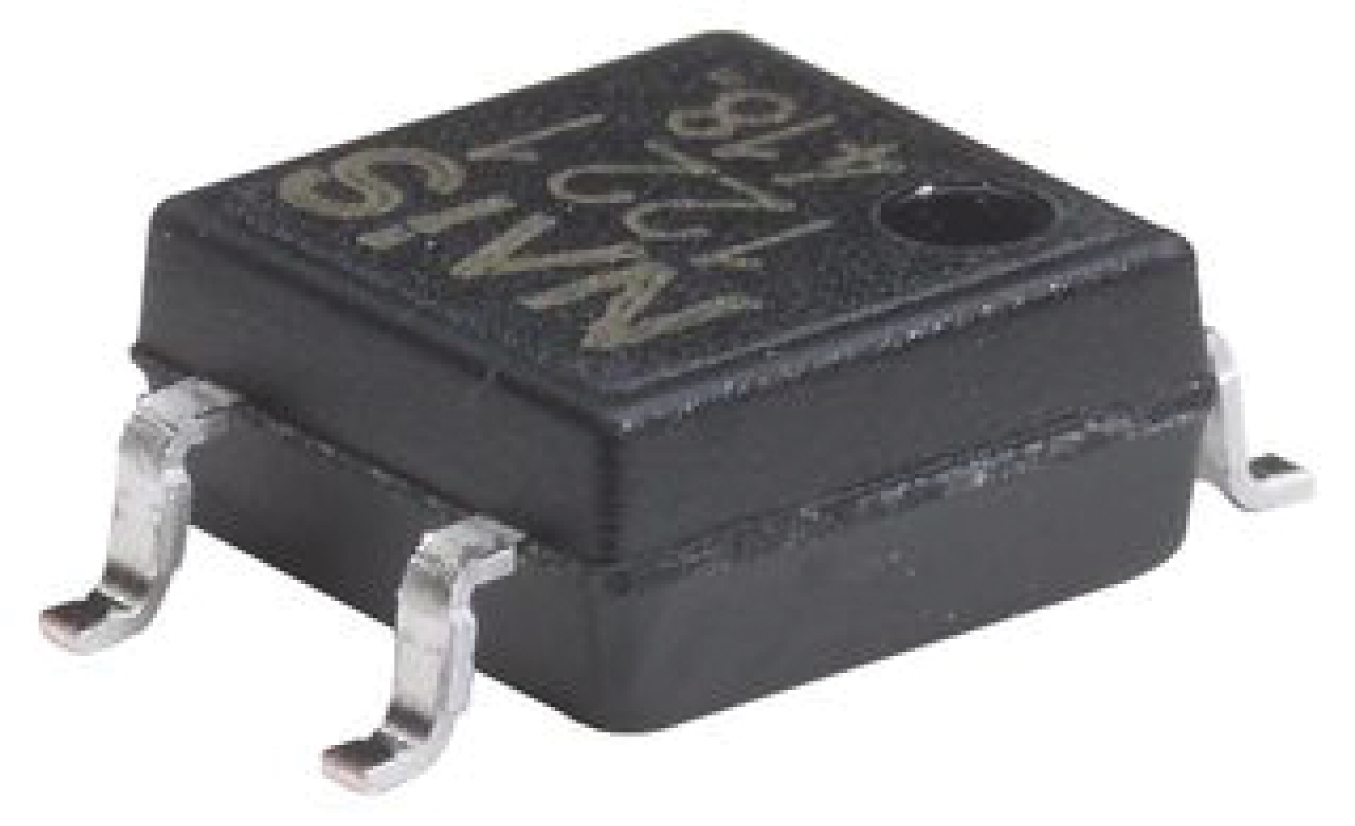

Panasonic 3.5 mA SPNO Solid State Relay, Zero Crossing, PCB Mount Triac, 600 V Maximum Load

APT1231S Panasonic 3.5 mA SPNO Solid State Relay, Zero Crossing, PCB Mount Triac, 600 V Maximum Load
Panasonic

Product Information

Dimensions:
4.3 x 4.4 x 2.1mm
Maximum Load Voltage:
600 V
Output Device:
Triac
Minimum Control Voltage:
1.21 V
Package Style:
SOP4
Off State Leakage Current:
1 μA
Switching Type:
Zero Cross
Maximum Operating Temperature:
+100°C
Terminal Type:
Surface Mount
Minimum Load Current:
0.3 mA
Operating Temperature Range:
-40 → +100°C
Control Voltage Range:
1.21 → 1.3 V
Contact Configuration:
SPST
Length:
4.3mm
Maximum Turn On Time:
0.1ms
Maximum Load Current:
3.5 mA
Mounting Type:
PCB Mount
Depth:
4.4mm
Height:
2.1mm
Minimum Operating Temperature:
-40°C
Maximum Control Voltage:
1.3 V
RoHs Compliant
Checking for live stock

This is 3.5 mA SPNO Solid State Relay Zero Crossing PCB Mount Triac 600 V Maximum Load manufactured by Panasonic. The manufacturer part number is APT1231S. The given dimensions of the product include 4.3 x 4.4 x 2.1mm. While its maximum load voltage is 600 v. Its output device includes triac. Additionally, it has a minimum 1.21 v control voltage . Its package is of sop4 style . Additionally, its off state leakage current is 1 μa . This product uses zero cross switching mechanism. It has a maximum operating temperature of +100°c. The terminal is a surface mount type. The product has a minimum 0.3 ma load current . The product has -40 → +100°c of operating temperature range. Moreover, it has a typical 1.21 → 1.3 v control voltage range . The contact is equipped with spst configuration. Its accurate length is 4.3mm. The product has a maximum 0.1ms turn on time . It carries 3.5 ma maximum load current. The product is available in pcb mount configuration. The product comes in 4.4mm depth. In addition, the height is 2.1mm. Whereas, the minimum operating temperature of the product is -40°c. The product has a maximum 1.3 v control voltage .

pdf icon
Phototriac Coupler (APT1) Data Sheet(Technical Reference)
