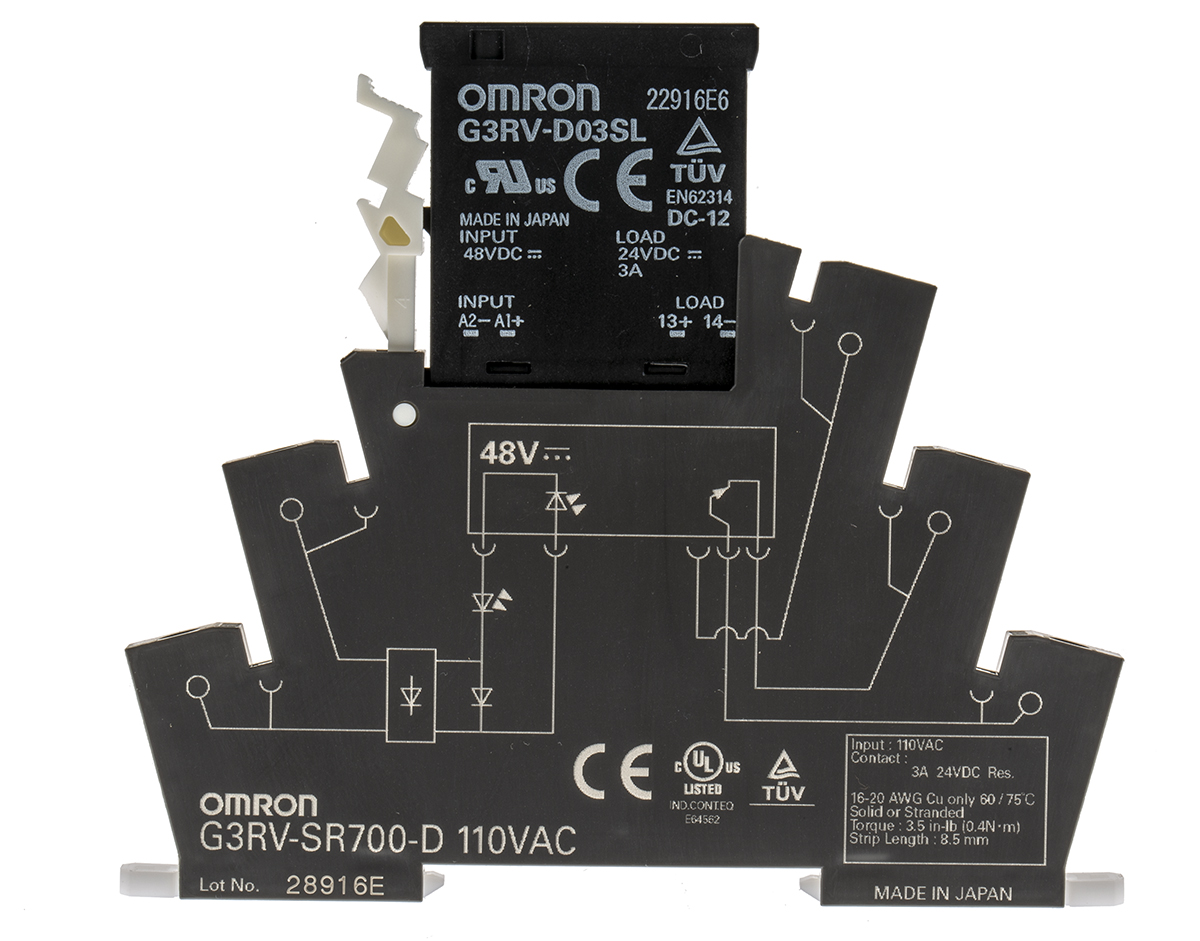

This is 3 A SP Solid State Relay AC/DC DIN Rail MOSFET 26.4 V dc Maximum Load manufactured by Omron. The manufacturer part number is G3RV-SR700-D AC110. The given dimensions of the product include 6.2 x 78 x 90mm. While its maximum load voltage is 26.4 v dc. Its output device includes mosfet. Its load voltage range is about 3 → 26.4v dc . The product complies with all safety standards, such as ce, culus, tuv certification. Additionally, its off state leakage current is 10 μa . The product has an assigned g3rv-sr700-d ac110 manufacturer part number. The terminal is a screw type. Moreover, it has a typical maximum of 110 v ac control voltage range . The product has -30 → +55°c of operating temperature range. The product has a minimum 100 μa load current . The contact is equipped with spst configuration. Its accurate length is 6.2mm. The product has a maximum 6 ms turn on time . The product also provides special features, such as high-speed opening and closing ssr, lower profile than conventional products. This product uses ac/dc switching mechanism. It carries 3 a maximum load current. The product is available in din rail configuration. The product g3rv-sr, is a highly preferred choice for users. The product comes in 78mm depth. In addition, the height is 90mm. The product has a maximum 110 v ac control voltage . It has equipped with 1 poles. It carries up to 3 v dc minimum load voltage.
For more information please check the datasheets.
