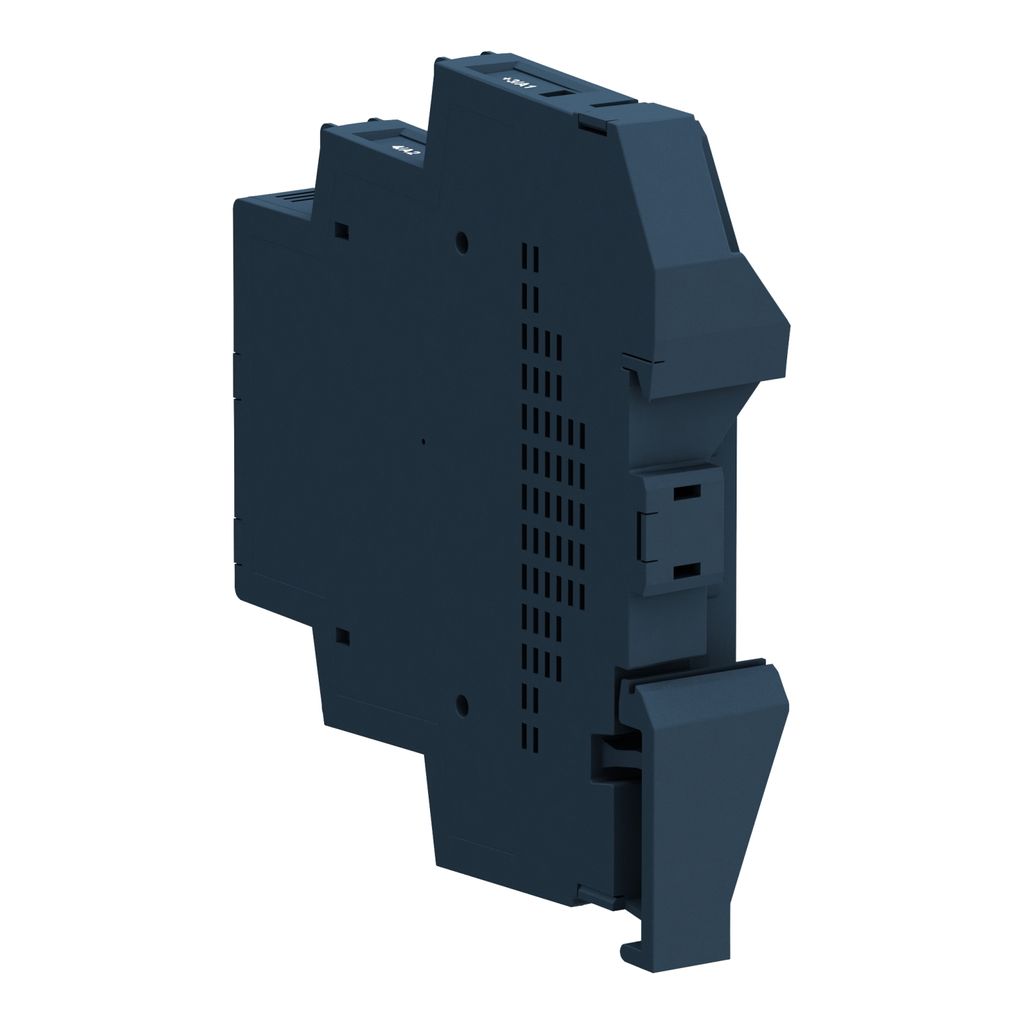

Schneider Electric 6 A SPNO Solid State Relay, AC Switching, DIN Rail SCR, 600 V ac Maximum Load

SSM2A16BD Schneider Electric 6 A SPNO Solid State Relay, AC Switching, DIN Rail SCR, 600 V ac Maximum Load
Schneider Electric

Product Information

Dimensions:
18.29 x 84.38 x 87.6mm
Capacitance:
10pF
Maximum Load Voltage:
600 V ac
Output Device:
SCR
Load Voltage Range:
24 → 280V ac
Standards Met:
CE, CSA, UL
Minimum Control Voltage:
4 V dc
Off State Leakage Current:
0.2 mA
Switching Type:
AC
Terminal Type:
Screw
Control Voltage Range:
4 → 32 V dc
Operating Temperature Range:
-30 → +80°C
Minimum Load Current:
0.00015 A
Contact Configuration:
SPST
Length:
18.29mm
Maximum Turn On Time:
1/2 cycle
Special Features:
Integrated Heat Sinks for Effective Thermal Management & Space Savings
Manufacturer Part No.:
SSM2A16BD
Maximum Load Current:
6 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Harmony Relay
Depth:
84.38mm
Height:
87.6mm
Maximum Control Voltage:
32 V dc
Number of Poles:
1
Minimum Load Voltage:
48 V ac
RoHs Compliant
Checking for live stock

This is 6 A SPNO Solid State Relay AC Switching DIN Rail SCR 600 V ac Maximum Load manufactured by Schneider Electric. The manufacturer part number is SSM2A16BD. The given dimensions of the product include 18.29 x 84.38 x 87.6mm. It provides a 10pf of capacitance value. While its maximum load voltage is 600 v ac. Its output device includes scr. Its load voltage range is about 24 → 280v ac . The product complies with all safety standards, such as ce, csa, ul. Additionally, it has a minimum 4 v dc control voltage . Additionally, its off state leakage current is 0.2 ma . This product uses ac switching mechanism. The terminal is a screw type. Moreover, it has a typical 4 → 32 v dc control voltage range . The product has -30 → +80°c of operating temperature range. The product has a minimum 0.00015 a load current . The contact is equipped with spst configuration. Its accurate length is 18.29mm. The product has a maximum 1/2 cycle turn on time . The product also provides special features, such as integrated heat sinks for effective thermal management & space savings. The product has an assigned ssm2a16bd manufacturer part number. It carries 6 a maximum load current. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in din rail configuration. The product harmony relay, is a highly preferred choice for users. The product comes in 84.38mm depth. In addition, the height is 87.6mm. The product has a maximum 32 v dc control voltage . It has equipped with 1 poles. It carries up to 48 v ac minimum load voltage.
