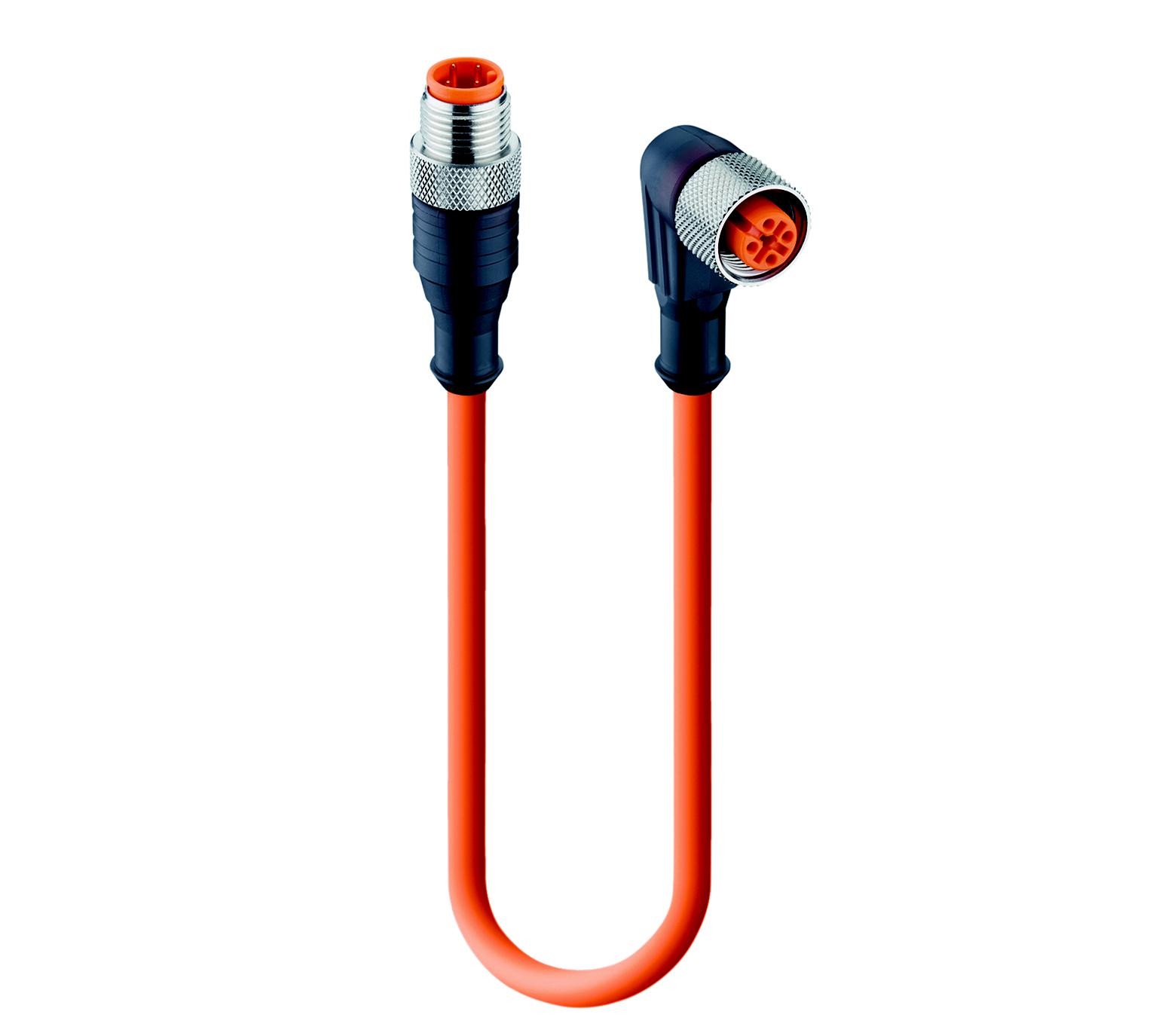

This is RST Series Straight Male to Angled Female Cordset 4 Core 3m Cable manufactured by Lumberg Automation. The manufacturer part number is 17015 RST 4-RKWT/LED P 4-251/3 M. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has < 10 mω resistance. Additionally, it is oil resistant yes . The product consists of 4 cores. Its outer diameter is 4.70mm. Furthermore, the product is shielded with unshielded. The product complies with all safety standards, such as iec 61076-2-101. There are 4 contacts on connector 1. Moreover, the product has a nominal 30 v voltage rating. Moreover, the product is unshielded . The product has -40 → +90 °c of operating temperature range. It has a maximum operating temperature of +90°c. It is IP rated with ip65, ip67, ip68, ip69k. The connector 1 has a straight orientation. It bears 5 x cable diameter of minimum bend radius. The product has a halogen free fire behaviour. This connector 1 is a male. Its accurate length is 3m. The sheath is constructed from durable and adorable pur material. In addition, its connector 2 orientation is right angle . Connector 2 is a female connector. On the other hand, the connector 2 has 4 contacts. The product is available in cable mount configuration. The conductor is made from copper material. The product rst, is a highly preferred choice for users. The product is coded with a. The sheath has an adorable orange colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. While the Connector 2 is m12. Connector 1 is m12. It has a robust pp insulation material.
For more information please check the datasheets.
