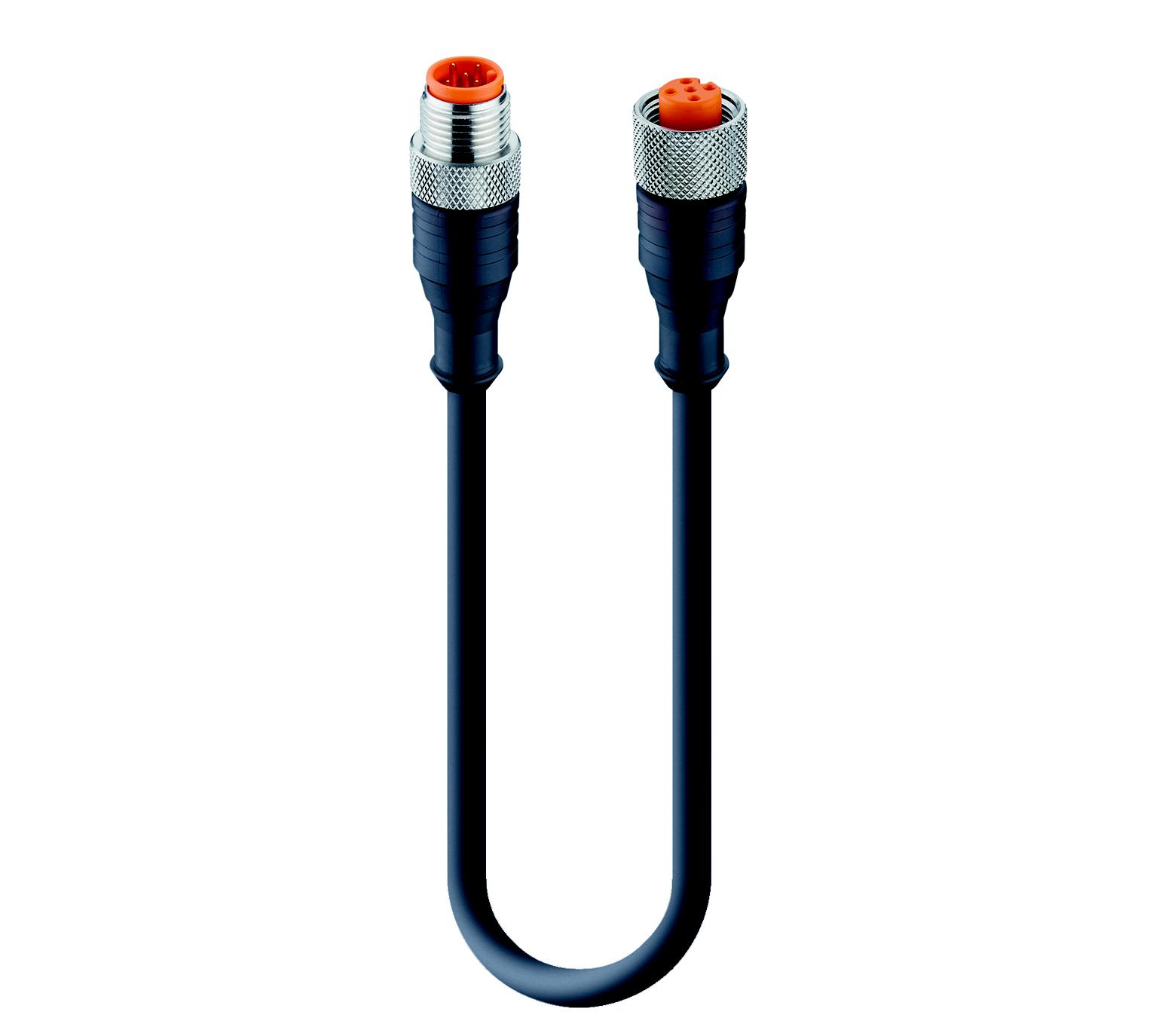

Lumberg Automation, RST Series, Straight Male to Straight Female Cordset, 5 Core 1m Cable

12020-RST-5-RKT-5-228-1-M Lumberg Automation, RST Series, Straight Male to Straight Female Cordset, 5 Core 1m Cable
Lumberg Automation

Product Information

American Wire Gauge:
20 AWG
Current Rating:
4 A
Conductor Resistance:
10 mΩ
Oil Resistant:
Yes
Number of Cores:
5
Outer Diameter:
5.40mm
Shielding:
Unshielded
Standards Met:
IEC 61076-2-101
Connector 1 Number of Contacts:
5
Voltage Rating:
60 V
Shielded/Unshielded:
Unshielded
Operating Temperature Range:
-40 → +90 °C
Maximum Operating Temperature:
+90°C
IP Rating:
IP65, IP67, IP68, IP69K
Connector 1 Orientation:
Straight
Minimum Bend Radius:
5 x cable diameter
Fire Behaviour:
Flame Retardant
Connector 1 Gender:
Male
Length:
1m
Sheath Material:
PUR
Connector 2 Orientation:
Straight
Connector 2 Gender:
Female
Connector 2 Number of Contacts:
5
Conductor Material:
Copper
Series:
RST
Coding:
A
Sheath Colour:
Black
Cross Sectional Area:
0.50 mm²
Minimum Operating Temperature:
-40°C
Connector 2:
M12
Connector 1:
M12
Insulation Material:
PP
RoHs Compliant
Checking for live stock

This is RST Series Straight Male to Straight Female Cordset 5 Core 1m Cable manufactured by Lumberg Automation. The manufacturer part number is 12020 RST 5-RKT 5-228/1 M. Features 20 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 10 mω resistance. Additionally, it is oil resistant yes . The product consists of 5 cores. Its outer diameter is 5.40mm. Furthermore, the product is shielded with unshielded. The product complies with all safety standards, such as iec 61076-2-101. There are 5 contacts on connector 1. Moreover, the product has a nominal 60 v voltage rating. Moreover, the product is unshielded . The product has -40 → +90 °c of operating temperature range. It has a maximum operating temperature of +90°c. It is IP rated with ip65, ip67, ip68, ip69k. The connector 1 has a straight orientation. It bears 5 x cable diameter of minimum bend radius. The product has a flame retardant fire behaviour. This connector 1 is a male. Its accurate length is 1m. The sheath is constructed from durable and adorable pur material. In addition, its connector 2 orientation is straight . Connector 2 is a female connector. On the other hand, the connector 2 has 5 contacts. The conductor is made from copper material. The product rst, is a highly preferred choice for users. The product is coded with a. The sheath has an adorable black colour. The product has 0.50 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. While the Connector 2 is m12. Connector 1 is m12. It has a robust pp insulation material.
