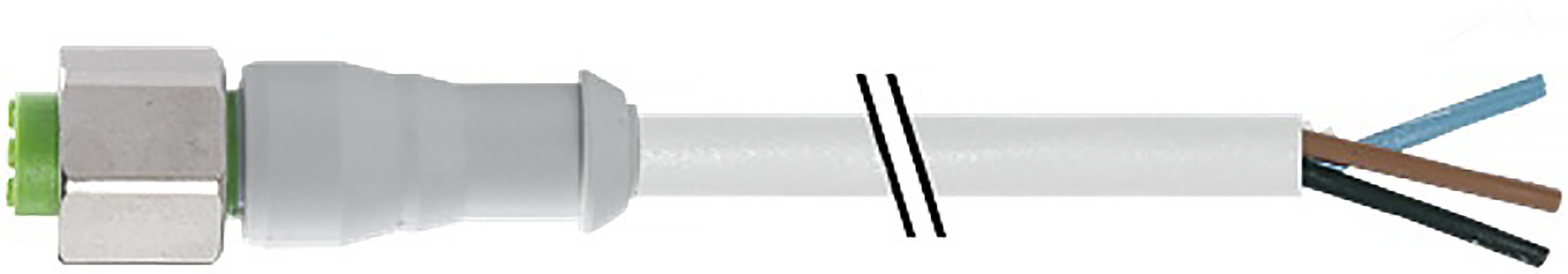

This is 7014 Series Connector & Cable with a 5 Pole Straight Female M12 Male 4:00 AM 125 V ac/dc 5000mm Cable manufactured by RS Pro. The manufacturer part number is 154-7727. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 60 ω/km resistance. Additionally, it is oil resistant yes . The product consists of 5 cores. Its outer diameter is 5.2mm. Additionally, it contains 19 strands. The product complies with all safety standards, such as csa, csaus, en 60529, ul. Moreover, this cable has a multicore shape. It is IP rated with ip65, ip66k, ip67, ip68. The core strands are 19/0.15 mm. Moreover, the product is unshielded . The product has -25 → +85 °c of operating temperature range. It has a maximum operating temperature of +85°c. Moreover, the product has a nominal 125 v ac/dc voltage rating. The connector 1 has a straight orientation. It bears 10 x 5.2 mm, 5 x 5.2 mm of minimum bend radius. The product has a flame retardant fire behaviour. This connector 1 is a female. Its accurate length is 5m. The sheath is constructed from durable and adorable pur material. The conductor is made from copper material. The strand size includes 0.15 mm. There are 5 contacts on connector 1. The sheath has an adorable grey colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -25°c. While the Connector 2 is unterminated. Connector 1 is m12. On the other hand, the gender of connector 1's housing is female. It has a robust pvc insulation material.
For more information please check the datasheets.
