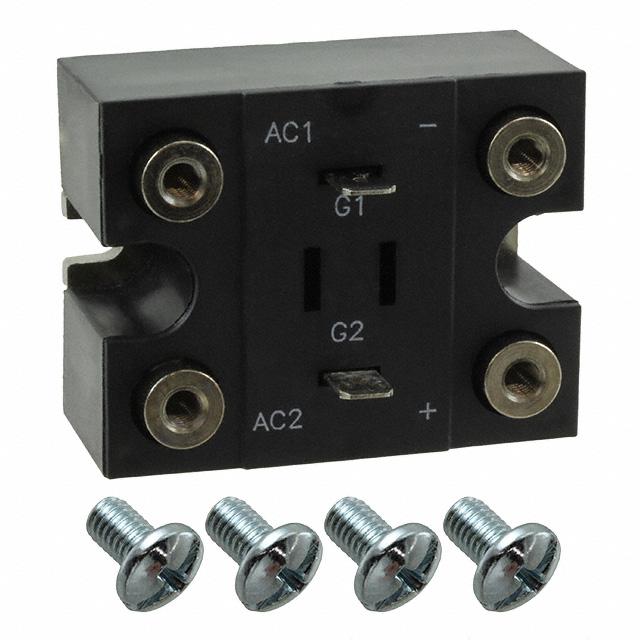

Sensata-Crydom M5010015F

M5010015F Sensata-Crydom
Sensata-Crydom

Product Information

HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
1.2 kV
Voltage - Gate Trigger (Vgt) (Max):
3 V
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
Module
edacadModel:
M5010015F Models
REACH Status:
REACH Affected
edacadModelUrl:
/en/models/752617
Structure:
Bridge, Single Phase - SCRs/Diodes (Layout 1)
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Gate Trigger (Igt) (Max):
150 mA
standardLeadTime:
24 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
1500A @ 60Hz
Mounting Type:
Chassis Mount
Series:
M50
Number of SCRs, Diodes:
2 SCRs, 2 Diodes
Base Product Number:
M5010015
ECCN:
EAR99
Checking for live stock

This is manufactured by Sensata-Crydom. The manufacturer part number is M5010015F. It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs3 compliant. It has an off state voltage of 1.2 kv. While the maximum voltage - gate trigger includes 3 v. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in module. In addition, it is reach affected. It has a bridge, single phase - scrs/diodes (layout 1) structure. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The maximum gate triggering current is 150 ma. It has a long 24 weeks standard lead time. Non rep. current with 50, 60Hz surge included 1500a @ 60hz. The product is available in chassis mount configuration. The product m50, is a highly preferred choice for users. It consists of 2 scrs, 2 diodes . Moreover, it corresponds to m5010015, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Solid State Power Switching Brochure(Datasheets)
pdf icon
M50 Series(Datasheets)
pdf icon
SCR Module Selection Guide(Other Related Documents)
pdf icon
CE Declaration of Conformity(Other Related Documents)
