Repetitive Peak Forward Blocking Voltage:
1200V
Repetitive Peak Reverse Voltage:
1200V
Peak On-State Voltage:
1.32V
Dimensions:
116 x 60 x 30mm
Mounting Type:
Panel Mount
Surge Current Rating:
9.8kA
Rated Average On-State Current:
320A
Repetitive Peak Off-State Current:
40mA
Package Type:
Y2 DCB
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
150mA
Maximum Gate Trigger Current:
150mA
Thyristor Type:
SCR Module
Maximum Operating Temperature:
+140 °C
Pin Count:
7
Maximum Gate Trigger Voltage:
2V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Gate Trigger (Vgt) (Max):
2 V
Operating Temperature:
-40°C ~ 140°C (TJ)
Package / Case:
Module
Current - Hold (Ih) (Max):
150 mA
title:

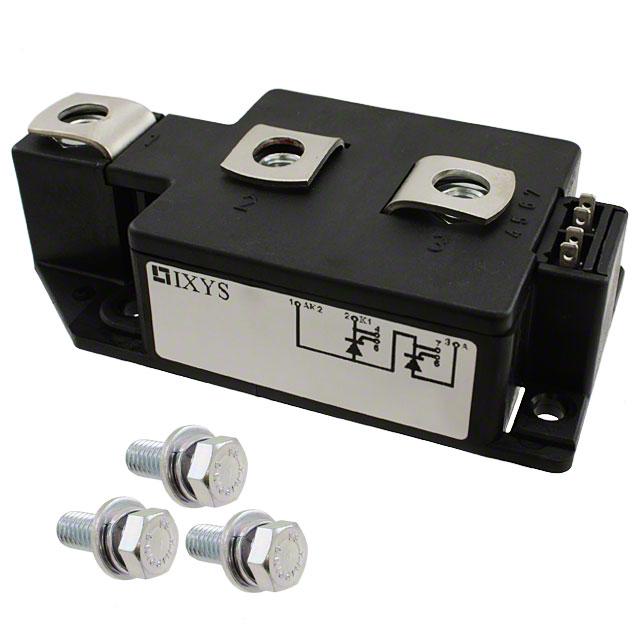

MCC310-12IO1
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
500 A
Voltage - Off State:
1.2 kV
Structure:
Series Connection - All SCRs
Manufacturer:
IXYS
Current - Gate Trigger (Igt) (Max):
150 mA
standardLeadTime:
15 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
9200A, 9800A
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
320 A
Series:
-
Packaging:
Bulk
Number of SCRs, Diodes:
2 SCRs
Base Product Number:
MCC310
ECCN:
EAR99
