Repetitive Peak Forward Blocking Voltage:
1600V
Repetitive Peak Reverse Voltage:
1600V
Peak On-State Voltage:
1.32V
Dimensions:
115 x 50 x 49mm
Mounting Type:
Panel Mount
Surge Current Rating:
10.1kA
Rated Average On-State Current:
320A
Repetitive Peak Off-State Current:
40mA
Package Type:
Y1 CU
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
150mA
Maximum Gate Trigger Current:
150mA
Thyristor Type:
SCR Module
Maximum Operating Temperature:
+140 °C
Pin Count:
7
Maximum Gate Trigger Voltage:
2V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Gate Trigger (Vgt) (Max):
2 V
Operating Temperature:
-40°C ~ 140°C (TJ)
Package / Case:
Y1-CU
Current - Hold (Ih) (Max):
150 mA

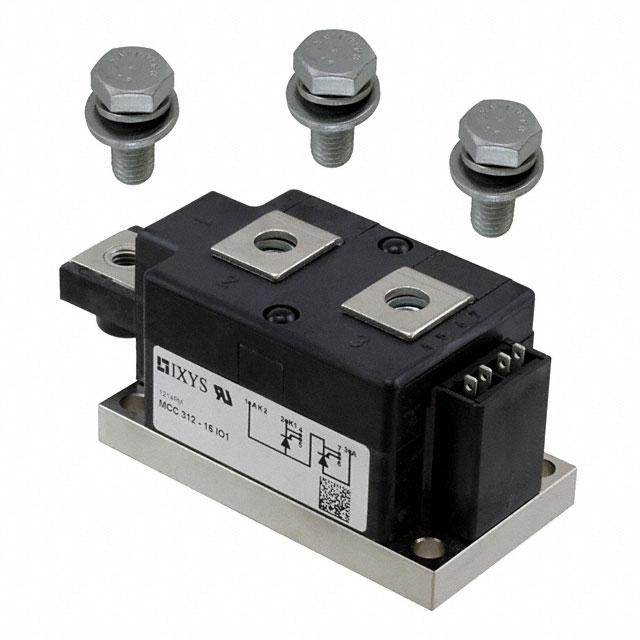

title:
MCC312-16IO1
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
520 A
Voltage - Off State:
1.6 kV
Structure:
Series Connection - All SCRs
Manufacturer:
IXYS
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Gate Trigger (Igt) (Max):
150 mA
standardLeadTime:
15 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
9200A, 10100A
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
320 A
Series:
-
Packaging:
Bulk
Number of SCRs, Diodes:
2 SCRs
Base Product Number:
MCC312
ECCN:
EAR99
