Repetitive Peak Forward Blocking Voltage:
1600V
Repetitive Peak Reverse Voltage:
1600V
Peak On-State Voltage:
1.64V
Dimensions:
92 x 20.8 x 30mm
Mounting Type:
Panel Mount
Surge Current Rating:
0.56kA
Rated Average On-State Current:
32A
Repetitive Peak Off-State Current:
3mA
Package Type:
TO-240AA
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
200mA
Maximum Gate Trigger Current:
100mA
Thyristor Type:
SCR Module
Maximum Operating Temperature:
+125 °C
Pin Count:
7
Maximum Gate Trigger Voltage:
1.5V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Gate Trigger (Vgt) (Max):
1.5 V
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
TO-240AA
Current - Hold (Ih) (Max):
200 mA
title:

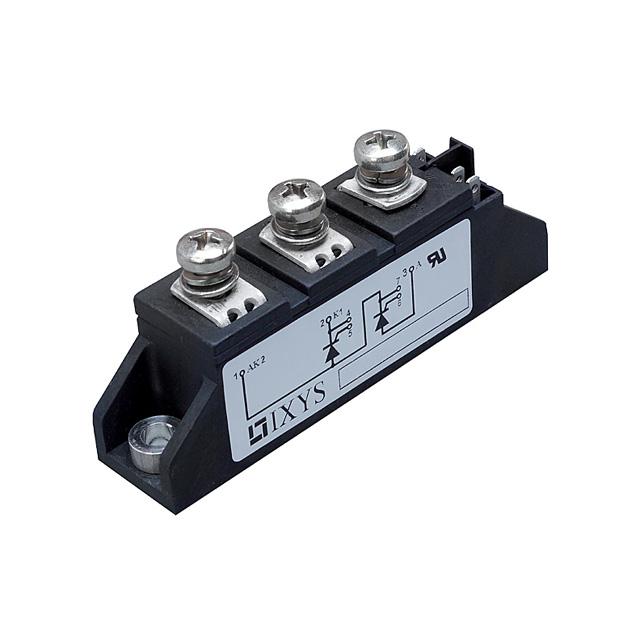

MCC26-16IO1B
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
50 A
Voltage - Off State:
1.6 kV
Structure:
Series Connection - All SCRs
Manufacturer:
IXYS
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
100 mA
standardLeadTime:
15 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
520A, 560A
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
32 A
Series:
-
Packaging:
Bulk
Number of SCRs, Diodes:
2 SCRs
Base Product Number:
MCC26
ECCN:
EAR99
