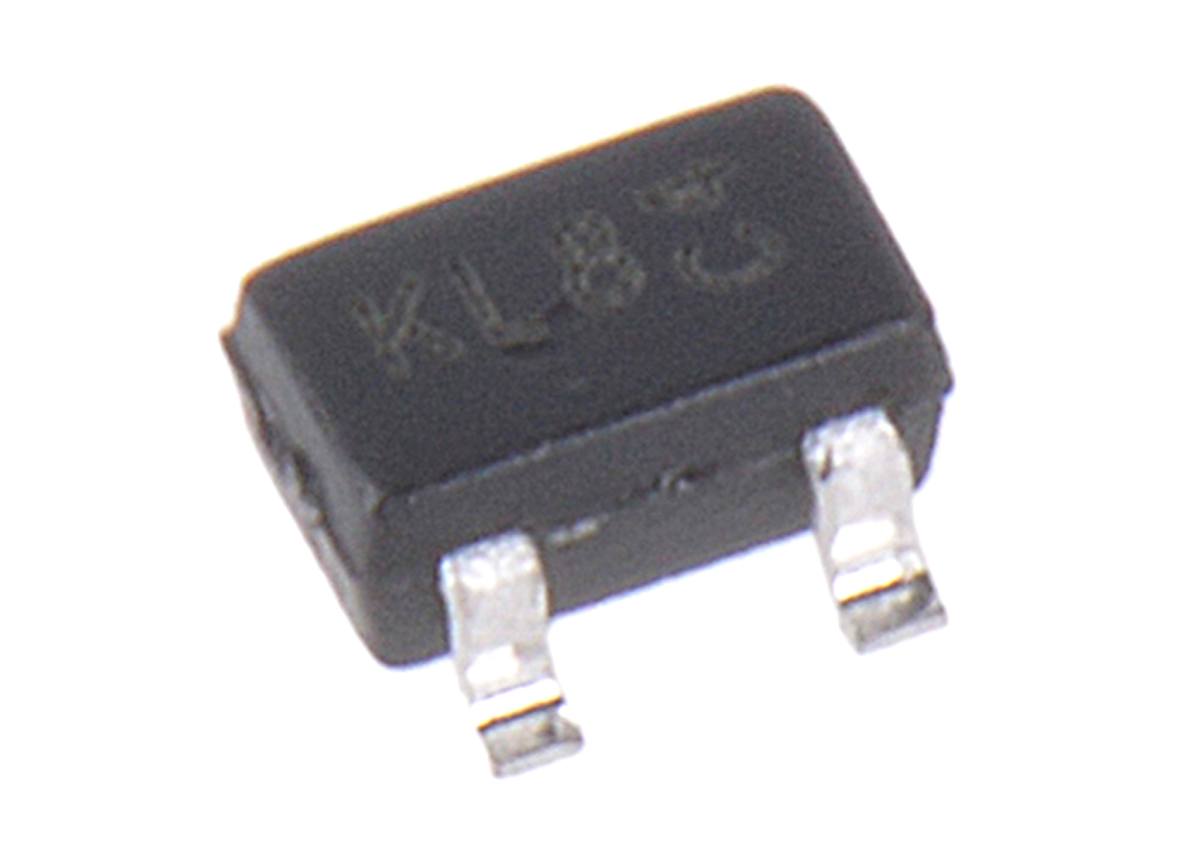

Diodes Inc BAT54SW-7-F Dual SMT Schottky Diode, Series, 30V 200mA, 3-Pin SOT-323

BAT54SW-7-F Diodes Inc Dual SMT Schottky Diode, Series, 30V 200mA, 3-Pin SOT-323
BAT54SW-7-F
DiodesZetex

Product Information

Mounting Type:
Surface Mount
Diode Technology:
Schottky Barrier
Peak Reverse Recovery Time:
5ns
Peak Non-Repetitive Forward Surge Current:
600mA
Maximum Forward Voltage Drop:
1V
Maximum Continuous Forward Current:
200mA
Rectifier Type:
Schottky Diode
Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
2
Diode Type:
Schottky
Diode Configuration:
Series
Pin Count:
3
Peak Reverse Repetitive Voltage:
30V
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual SMT Schottky Diode Series 30V 200mA 3-Pin SOT-323 manufactured by DiodesZetex. The manufacturer part number is BAT54SW-7-F. The product is available in surface mount configuration. The product utilizes schottky barrier diode technology. Moreover, it has a peak reverse recovery time about 5ns . Moreover, a bespoke product has 600ma peak non-repetitive forward surge current. It features 1v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 200ma. This schottky diode product is highly suited for various professionals in various settings. The package is a sort of sot-323 (sc-70). It consists of 2 elements per chip. It is designed with a schottky diode. The diode features a series configuration. It contains 3 pins. While having the peak reverse repetitive 30v.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Datasheet - BAT54SW-7-F(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BAT54SW-7-F on website for other similar products.
We accept all major payment methods for all products including ET16759495. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with BAT54SW-7-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schottky Diodes & Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc BAT54SW-7-F Dual SMT Schottky Diode, Series, 30V 200mA, 3-Pin SOT-323. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc BAT54SW-7-F Dual SMT Schottky Diode, Series, 30V 200mA, 3-Pin SOT-323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16759495 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16759495.
Yes. We ship BAT54SW-7-F Internationally to many countries around the world.
