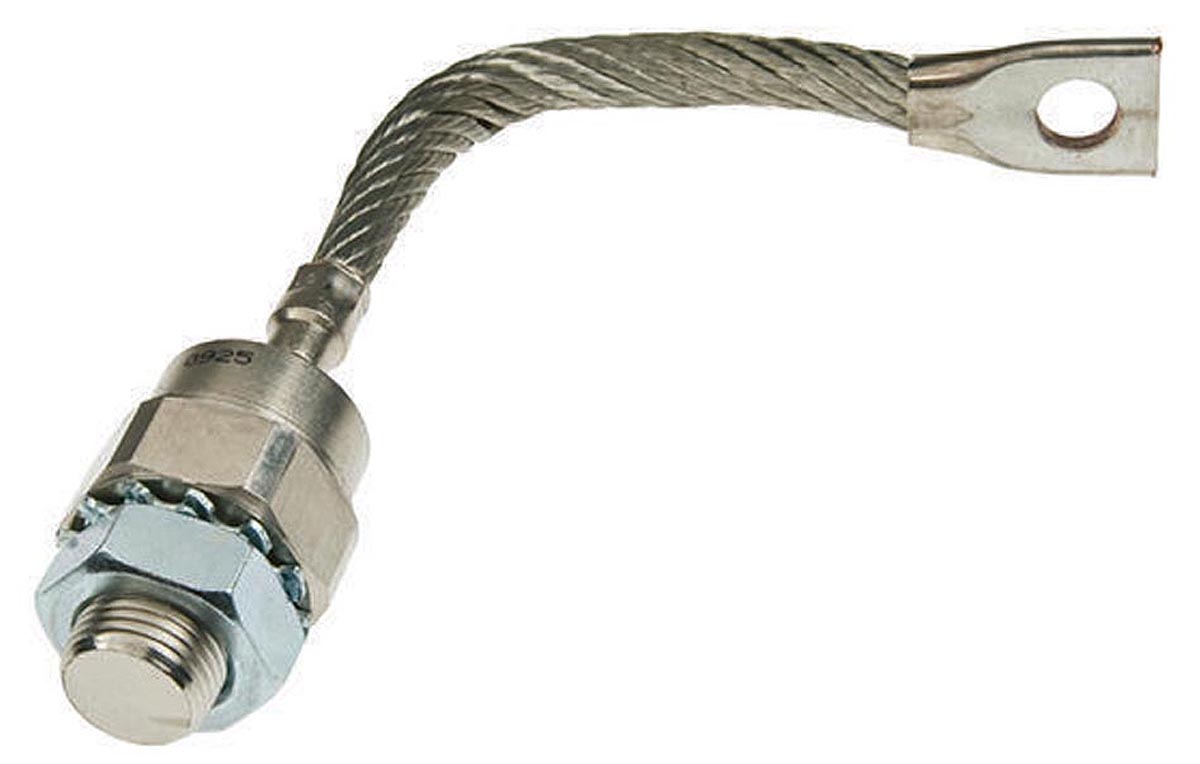

Vishay VS-SD400N24PC Thread Mount High Voltage Diode, Stud Cathode, 2400V 480A, 2-Pin DO-205AB

Enrgtech Part No: ET16724359
|
Manufacturer Part No:
VS-SD400N24PC
|
Manufacturer: Vishay

VS-SD400N24PC Vishay Thread Mount High Voltage Diode, Stud Cathode, 2400V 480A, 2-Pin DO-205AB

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

8.6kA

Maximum Forward Voltage Drop:

1.62V

Maximum Continuous Forward Current:

480A

Rectifier Type:

Recovery Rectifier

Package Type:

DO-205AB

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

2400V

Checking for live stock

This is Thread Mount High Voltage Diode Stud Cathode 2400V 480A 2-Pin DO-205AB manufactured by Vishay. The manufacturer part number is VS-SD400N24PC. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 8.6ka peak non-repetitive forward surge current. It features 1.62v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 480a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-205ab. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 2400v.
