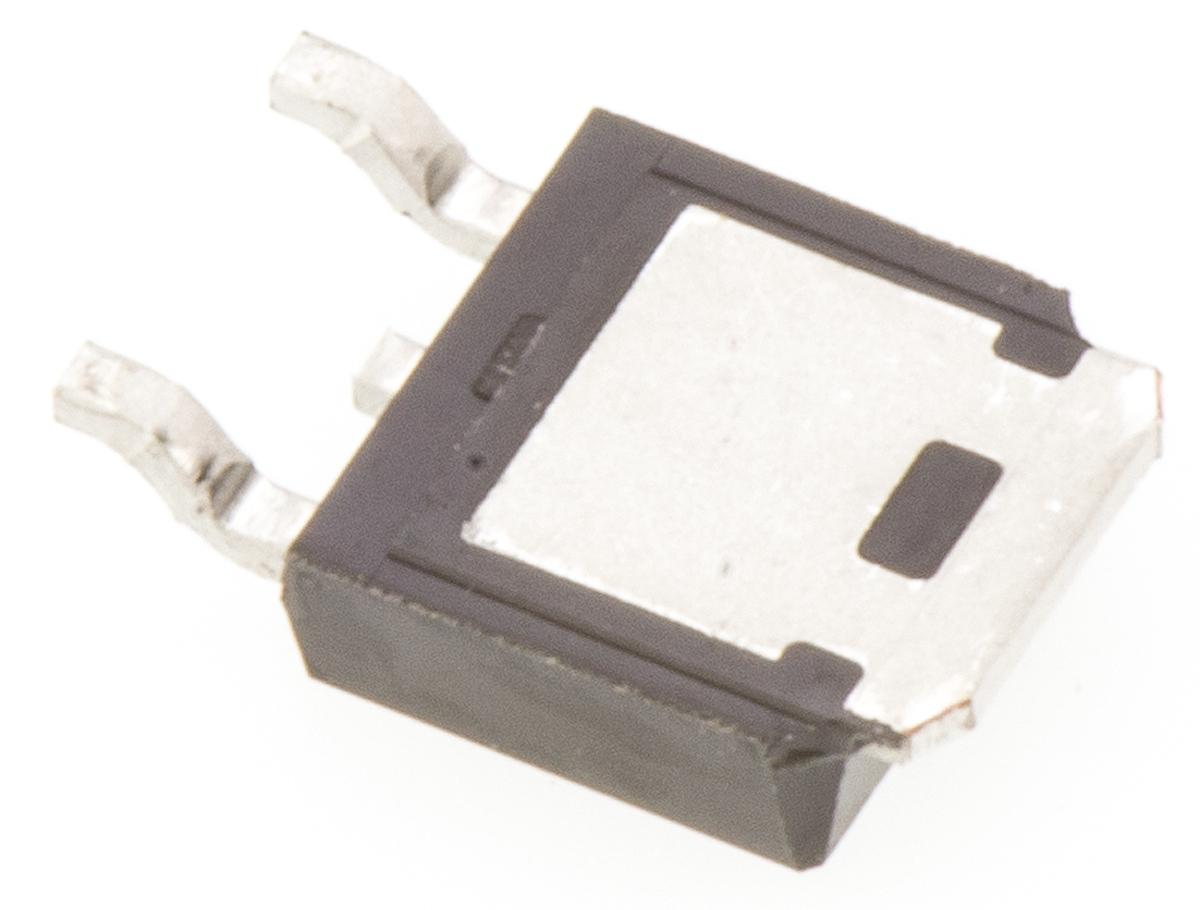

Vishay VS-12CWQ10FN-M3 Dual SMT Schottky Diode, Common Cathode, 100V 12A, 3-Pin DPAK

VS-12CWQ10FN-M3 Vishay Dual SMT Schottky Diode, Common Cathode, 100V 12A, 3-Pin DPAK
VS-12CWQ10FN-M3
Vishay

Product Information

Mounting Type:
Surface Mount
Diode Technology:
Schottky
Peak Non-Repetitive Forward Surge Current:
330A
Maximum Forward Voltage Drop:
650mV
Maximum Continuous Forward Current:
12A
Rectifier Type:
Schottky Rectifier
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
2
Diode Type:
Schottky
Diode Configuration:
Common Cathode
Pin Count:
3
Peak Reverse Repetitive Voltage:
100V
RoHs Compliant
Checking for live stock

This is Dual SMT Schottky Diode Common Cathode 100V 12A 3-Pin DPAK manufactured by Vishay. The manufacturer part number is VS-12CWQ10FN-M3. The product is available in surface mount configuration. The product utilizes schottky diode technology. Moreover, a bespoke product has 330a peak non-repetitive forward surge current. It features 650mv of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 12a. This schottky rectifier product is highly suited for various professionals in various settings. The package is a sort of dpak (to-252). It consists of 2 elements per chip. It is designed with a schottky diode. The diode features a common cathode configuration. It contains 3 pins. While having the peak reverse repetitive 100v.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search VS-12CWQ10FN-M3 on website for other similar products.
We accept all major payment methods for all products including ET16724227. Please check your shopping cart at the time of order.
You can order Vishay brand products with VS-12CWQ10FN-M3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schottky Diodes & Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay VS-12CWQ10FN-M3 Dual SMT Schottky Diode, Common Cathode, 100V 12A, 3-Pin DPAK. You can also check on our website or by contacting our customer support team for further order details on Vishay VS-12CWQ10FN-M3 Dual SMT Schottky Diode, Common Cathode, 100V 12A, 3-Pin DPAK.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16724227 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16724227.
Yes. We ship VS-12CWQ10FN-M3 Internationally to many countries around the world.
