Name: VS-45L40, Vishay
Brand: Vishay
SKU: ET14131728
Availability: PreOrder

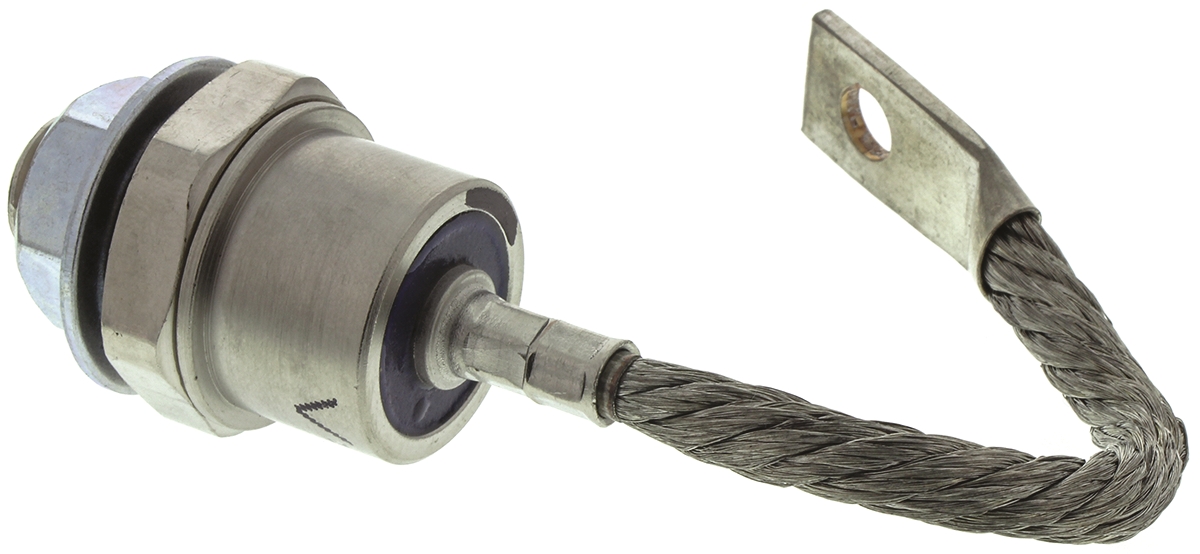

VS-45L40 Vishay Thread Mount Switching Diode, Stud Cathode, 400V 150A, 2-Pin DO-30

(0)

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Maximum Continuous Forward Current:

150A

Peak Non-Repetitive Forward Surge Current:

3.7kA

Maximum Forward Voltage Drop:

1.33V

Rectifier Type:

Recovery Rectifier

Package Type:

DO-30

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

400V

Checking for live stock

This is Thread Mount Switching Diode Stud Cathode 400V 150A 2-Pin DO-30 manufactured by Vishay. The manufacturer part number is VS-45L40. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Furthermore, its maximum continuous forward current constitutes 150a. Moreover, a bespoke product has 3.7ka peak non-repetitive forward surge current. It features 1.33v of maximum forward voltage drop. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-30. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 400v.
