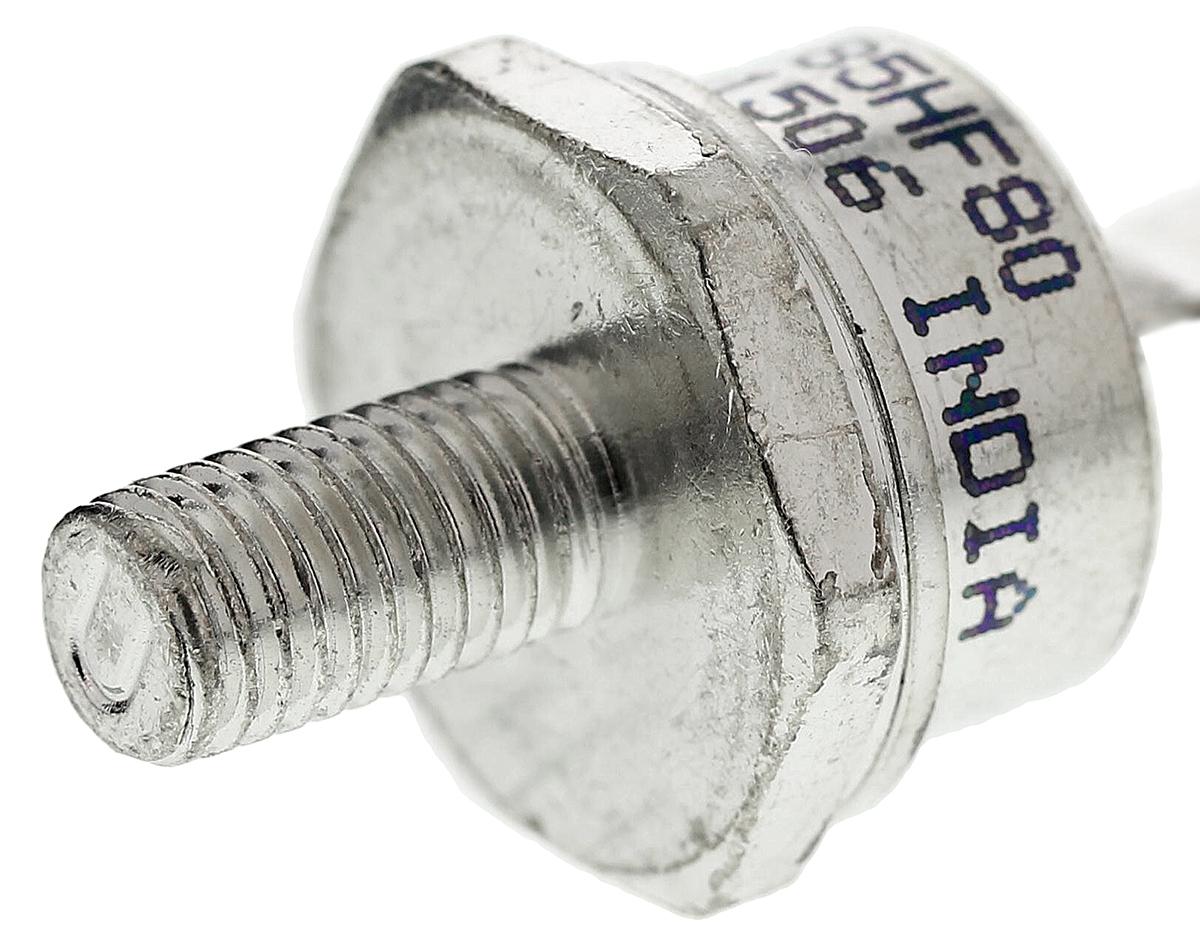

Vishay VS-85HF80 Thread Mount Fast Recovery Diode, Stud Cathode, 800V 85A, 2-Pin DO-203AB

Enrgtech Part No: ET13802965
|
Manufacturer Part No:
VS-85HF80
|
Manufacturer: Vishay

VS-85HF80 Vishay Thread Mount Fast Recovery Diode, Stud Cathode, 800V 85A, 2-Pin DO-203AB

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

1.8kA

Maximum Forward Voltage Drop:

1.2V

Maximum Continuous Forward Current:

85A

Rectifier Type:

Switching

Package Type:

DO-5

Number of Elements per Chip:

Diode Type:

Silicon Junction

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

800V

Checking for live stock

This is Thread Mount Fast Recovery Diode Stud Cathode 800V 85A 2-Pin DO-203AB manufactured by Vishay. The manufacturer part number is VS-85HF80. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 1.8ka peak non-repetitive forward surge current. It features 1.2v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 85a. This switching product is highly suited for various professionals in various settings. The package is a sort of do-5. It consists of 1 elements per chip. It is designed with a silicon junction diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 800v.
