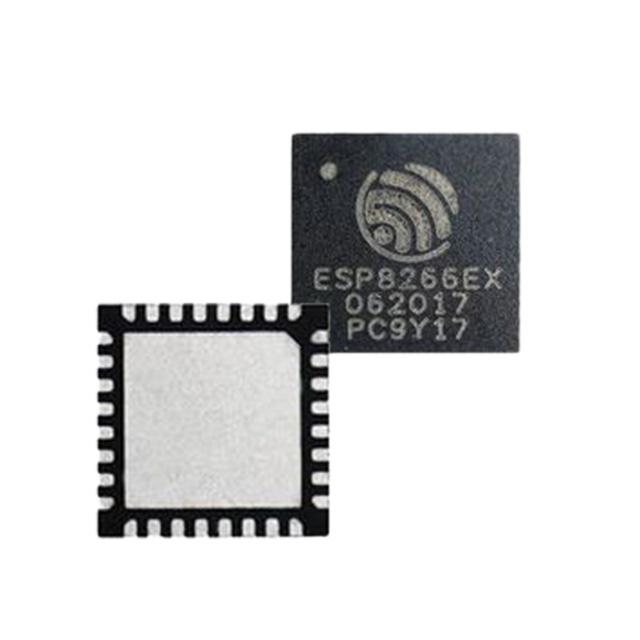

Espressif Systems ESP8266EX

ESP8266EX Espressif Systems
Espressif Systems

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
DigiKey Programmable:
Not Verified
Supplier Device Package:
32-QFN (5x5)
Memory Size:
-
Package / Case:
32-VFQFN Exposed Pad
GPIO:
8
Type:
TxRx + MCU
Current - Transmitting:
120mA ~ 170mA
Current - Receiving:
50mA ~ 56mA
Modulation:
-
REACH Status:
REACH Unaffected
edacadModel:
ESP8266EX Models
edacadModelUrl:
/en/models/8028401
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
WiFi
standardLeadTime:
6 Weeks
Data Rate (Max):
54Mbps
Protocol:
802.11b/g/n
Mounting Type:
Surface Mount
Series:
-
Sensitivity:
-91dBm
Serial Interfaces:
I2C, I2S, SPI, UART
Packaging:
Tape & Reel (TR)
Frequency:
2.4GHz
Voltage - Supply:
2.5V ~ 3.6V
Power - Output:
20dBm
Base Product Number:
ESP8266
ECCN:
5A992C
Checking for live stock

This is manufactured by Espressif Systems. The manufacturer part number is ESP8266EX. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 32-qfn (5x5) is the supplier device package value. Moreover, the product comes in 32-vfqfn exposed pad. It consists of 8 GPIO. It comes in txrx + mcu configuration. It carries 120ma ~ 170ma transmission current. The current receiving of the product is 50ma ~ 56ma. In addition, it is reach unaffected. Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes wifi. It has a long 6 weeks standard lead time. Robust and maximum data rate speed of 54mbps. The product features a 802.11b/g/n protocol. The product is available in surface mount configuration. The sensitivity given includes -91dbm. It features i2c, i2s, spi, uart serial interface. In addition, tape & reel (tr) is the available packaging type of the product. Supplied with 2.4ghz of frequency. It has optimum voltage supply of 2.5v ~ 3.6v. The product has an output power 20dbm. Moreover, it corresponds to esp8266, a base product number of the product. The product is designated with the 5a992c code number.

pdf icon
ESP8266EX(Datasheets)
pdf icon
ESP8266 Quick Start Guide(Datasheets)
pdf icon
Label Format Change 21/Jun/2023(PCN Packaging)
