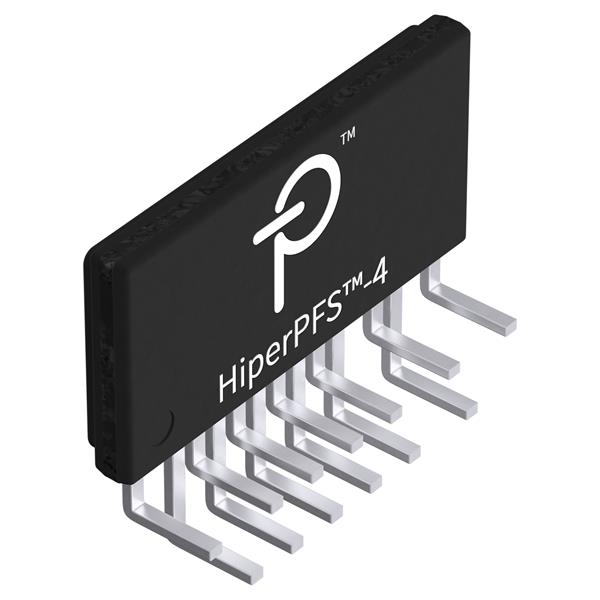

Power Integrations PFS7729H

PFS7729H Power Integrations
Power Integrations

Product Information

Maximum Operating Supply Voltage:
12 V
Package Type:
Plastic eSIP
Pin Count:
16
Maximum Switching Frequency:
60 kHz
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
16-SSIP, 13 Leads, Exposed Pad, Formed Leads
edacadModel:
PFS7729H Models
Frequency - Switching:
22kHz ~ 123kHz
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/13997576
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Mode:
Continuous Conduction (CCM)
standardLeadTime:
18 Weeks
Mounting Type:
Through Hole
Series:
HiperPFS™-4
Supplier Device Package:
eSIP-16D
Voltage - Supply:
10.2V ~ 15V
Base Product Number:
PFS7729
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Power Integrations. The manufacturer part number is PFS7729H. It has 12 v maximum operating supply voltage. The package is a sort of plastic esip. It contains 16 pins. It has a maximum 60 khz switching frequency. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 16-ssip, 13 leads, exposed pad, formed leads. The switching frequency of the standard product is 22khz ~ 123khz. In addition, it is reach unaffected. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. Mode Options - continuous conduction (ccm). It has a long 18 weeks standard lead time. The product is available in through hole configuration. The product hiperpfs™-4, is a highly preferred choice for users. esip-16d is the supplier device package value. It has optimum voltage supply of 10.2v ~ 15v. Moreover, it corresponds to pfs7729, a base product number of the product. The product is designated with the ear99 code number.
