Maximum Continuous Drain Current:
65 A
Width:
5.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
650 V
Maximum Gate Threshold Voltage:
5V

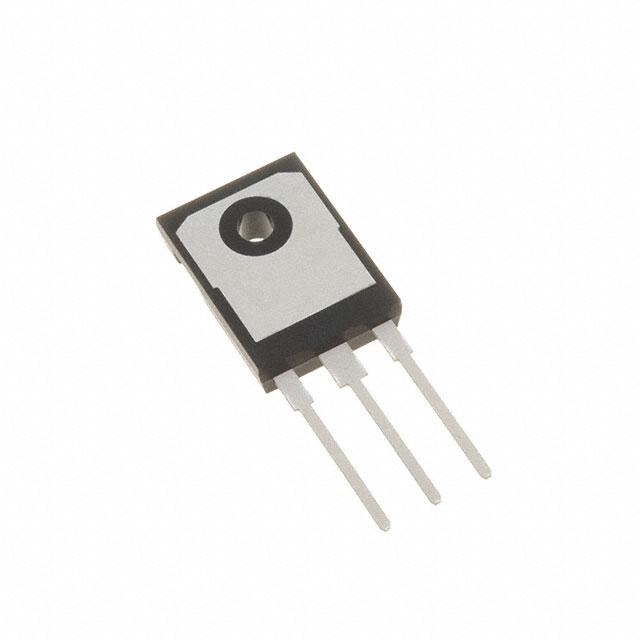

Package Type:
TO-247AD
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
159 @ 10 V nC
Channel Type:
N
Length:
16.25mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
446 W
Maximum Gate Source Voltage:
±30 V
Height:
21.34mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.3V
Maximum Drain Source Resistance:
40 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
5V @ 2.1mA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-247-3
Rds On (Max) @ Id, Vgs:
40mOhm @ 32.5A, 10V
Gate Charge (Qg) (Max) @ Vgs:
159 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tube
Drain to Source Voltage (Vdss):
650 V
Vgs (Max):
±30V
Moisture Sensitivity Level (MSL):
Not Applicable
Power Dissipation (Max):
446W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
5945 pF @ 400 V
Mounting Type:
Through Hole
Series:
FRFET®, SuperFET® III
Supplier Device Package:
TO-247-3
Current - Continuous Drain (Id) @ 25°C:
65A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
NTHLD040
ECCN:
EAR99
