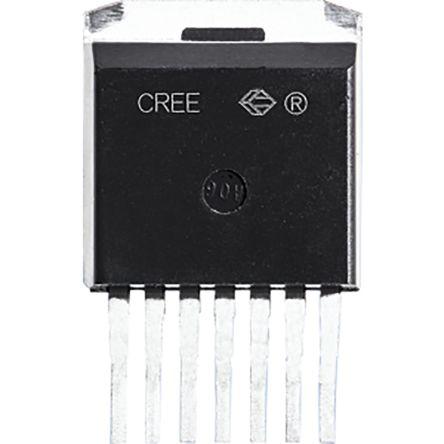

SiC N-Channel MOSFET, 35 A, 1000 V, 7-Pin D2PAK Wolfspeed C3M0065100J

C3M0065100J SiC N-Channel MOSFET, 35 A, 1000 V, 7-Pin D2PAK Wolfspeed
Wolfspeed

Product Information

Maximum Continuous Drain Current:
35 A
Transistor Material:
SiC
Width:
9.12mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
1000 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
TO-263
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.8V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
35 nC @ 4/15V
Channel Type:
N
Length:
10.23mm
Pin Count:
7
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
113.5 W
Maximum Gate Source Voltage:
-8 V, 19 V
Height:
4.57mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
65 mΩ
RoHs Compliant
Checking for live stock

This is SiC N-Channel MOSFET 35 A 1000 V 7-Pin D2PAK manufactured by Wolfspeed. The manufacturer part number is C3M0065100J. While 35 a of maximum continuous drain current. The transistor is manufactured from highly durable sic material. Furthermore, the product is 9.12mm wide. The product offers single transistor configuration. It has a maximum of 1000 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of to-263. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1.8v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 35 nc @ 4/15v. The product is available in [Cannel Type] channel. Its accurate length is 10.23mm. It contains 7 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 113.5 w maximum power dissipation. It features a maximum gate source voltage of -8 v, 19 v. In addition, the height is 4.57mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 65 mω maximum drain source resistance.
