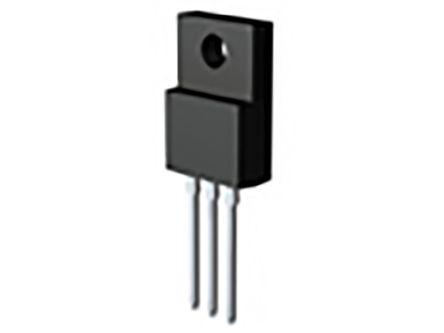

ROHM R8005ANX N-channel MOSFET, 5 A, 800 V, 3-Pin TO-220FM

Enrgtech Part No: ET16909054
|
Manufacturer Part No:
R8005ANX
|
Manufacturer: ROHM

R8005ANX ROHM N-channel MOSFET, 5 A, 800 V, 3-Pin TO-220FM

Product Information

Maximum Drain Source Voltage:

800 V

Typical Gate Charge @ Vgs:

21 nC @ 10 V

Mounting Type:

Through Hole

Channel Mode:

Enhancement

Maximum Power Dissipation:

51 W

Maximum Gate Source Voltage:

±30 V

Maximum Gate Threshold Voltage:

Height:

15.4mm

Width:

4.8mm

Length:

10.3mm

Maximum Drain Source Resistance:

3.69 Ω

Package Type:

TO-220FM

Checking for live stock

This is N-channel MOSFET 5 A 800 V 3-Pin TO-220FM manufactured by ROHM. The manufacturer part number is R8005ANX. It has a maximum of 800 v drain source voltage. With a typical gate charge at Vgs includes 21 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 51 w maximum power dissipation. It features a maximum gate source voltage of ±30 v. The product carries 5v of maximum gate threshold voltage. In addition, the height is 15.4mm. Furthermore, the product is 4.8mm wide. Its accurate length is 10.3mm. It provides up to 3.69 ω maximum drain source resistance. The package is a sort of to-220fm. It consists of 1 elements per chip. While 5 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 3v. Its forward diode voltage is 1.5v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search R8005ANX on website for other similar products.

We accept all major payment methods for all products including ET16909054. Please check your shopping cart at the time of order.

You can order ROHM brand products with R8005ANX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in MOSFETs category are shipped in lowest possible time.

You will get a confirmation email regarding your order of ROHM R8005ANX N-channel MOSFET, 5 A, 800 V, 3-Pin TO-220FM. You can also check on our website or by contacting our customer support team for further order details on ROHM R8005ANX N-channel MOSFET, 5 A, 800 V, 3-Pin TO-220FM.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16909054 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ROHM" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16909054.

Yes. We ship R8005ANX Internationally to many countries around the world.
