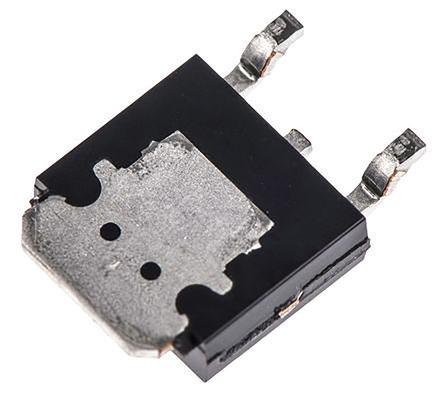

ROHM RSD100N10TL N-channel MOSFET, 10 A, 100 V RSD100N10, 3+Tab-Pin SOT-428

RSD100N10TL ROHM  N-channel MOSFET, 10 A, 100 V RSD100N10, 3+Tab-Pin SOT-428
RSD100N10TL
ROHM

Product Information

Maximum Continuous Drain Current:
10 A
Transistor Material:
Si
Width:
5.5mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Maximum Gate Threshold Voltage:
2.5V
Package Type:
SOT-428
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18 nC @ 10 V
Channel Type:
N
Length:
6.5mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
20 W
Series:
RSD100N10
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
2.3mm
Forward Diode Voltage:
1.5V
Maximum Drain Source Resistance:
147 mΩ
Checking for live stock

This is N-channel MOSFET 10 A 100 V RSD100N10 3+Tab-Pin SOT-428 manufactured by ROHM. The manufacturer part number is RSD100N10TL. While 10 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.5mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The product carries 2.5v of maximum gate threshold voltage. The package is a sort of sot-428. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 18 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.5mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 20 w maximum power dissipation. The product rsd100n10, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 2.3mm. Its forward diode voltage is 1.5v . It provides up to 147 mω maximum drain source resistance.

pdf icon
RSD100N10, 4V Drive N-Channel MOSFET (100V, 10A)(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
