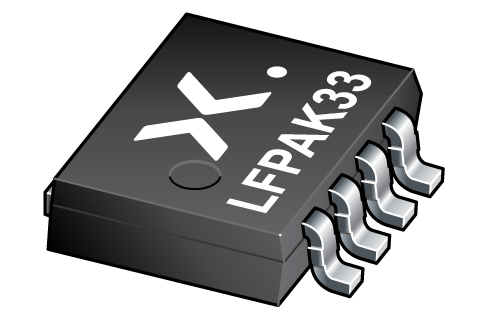

Nexperia PSMN011-60MSX N-channel MOSFET, 61 A, 60 V, 4-Pin LFPAK33, SOT1210

PSMN011-60MSX Nexperia N-channel MOSFET, 61 A, 60 V, 4-Pin LFPAK33, SOT1210
Nexperia

Product Information

Maximum Drain Source Voltage:
60 V
Typical Gate Charge @ Vgs:
23 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
91 W
Maximum Gate Source Voltage:
20 V
Maximum Gate Threshold Voltage:
4.6V
Height:
0.9mm
Width:
2.7mm
Length:
3.4mm
Maximum Drain Source Resistance:
24.4 mΩ
Package Type:
LFPAK33
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
61 A
Minimum Gate Threshold Voltage:
1V
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
4
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 61 A 60 V 4-Pin LFPAK33 SOT1210 manufactured by Nexperia. The manufacturer part number is PSMN011-60MSX. It has a maximum of 60 v drain source voltage. With a typical gate charge at Vgs includes 23 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 91 w maximum power dissipation. It features a maximum gate source voltage of 20 v. The product carries 4.6v of maximum gate threshold voltage. In addition, the height is 0.9mm. Furthermore, the product is 2.7mm wide. Its accurate length is 3.4mm. It provides up to 24.4 mω maximum drain source resistance. The package is a sort of lfpak33. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 61 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 1v. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 4 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
