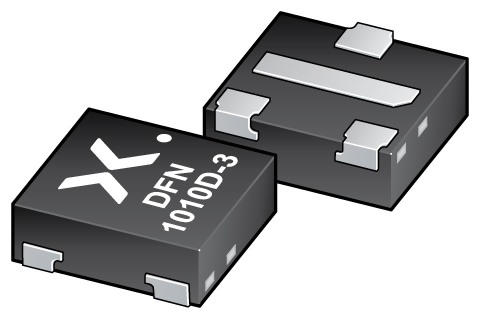

Nexperia PMXB43UNEZ 3 N-channel MOSFET, 3.2 A, 20 V, 4-Pin DFN1010D-3, SOT1215

PMXB43UNEZ Nexperia  3 N-channel MOSFET, 3.2 A, 20 V, 4-Pin DFN1010D-3, SOT1215
Nexperia

Product Information

Maximum Drain Source Voltage:
20 V
Typical Gate Charge @ Vgs:
5.7 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
8.33 W
Maximum Gate Source Voltage:
8 V
Maximum Gate Threshold Voltage:
0.9V
Height:
0.36mm
Width:
1.05mm
Length:
1.15mm
Maximum Drain Source Resistance:
120 mΩ
Package Type:
DFN1010D-3
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
3.2 A
Minimum Gate Threshold Voltage:
0.4V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is 3 N-channel MOSFET 3.2 A 20 V 4-Pin DFN1010D-3 SOT1215 manufactured by Nexperia. The manufacturer part number is PMXB43UNEZ. It has a maximum of 20 v drain source voltage. With a typical gate charge at Vgs includes 5.7 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 8.33 w maximum power dissipation. It features a maximum gate source voltage of 8 v. The product carries 0.9v of maximum gate threshold voltage. In addition, the height is 0.36mm. Furthermore, the product is 1.05mm wide. Its accurate length is 1.15mm. It provides up to 120 mω maximum drain source resistance. The package is a sort of dfn1010d-3. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 3.2 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 0.4v. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration.
