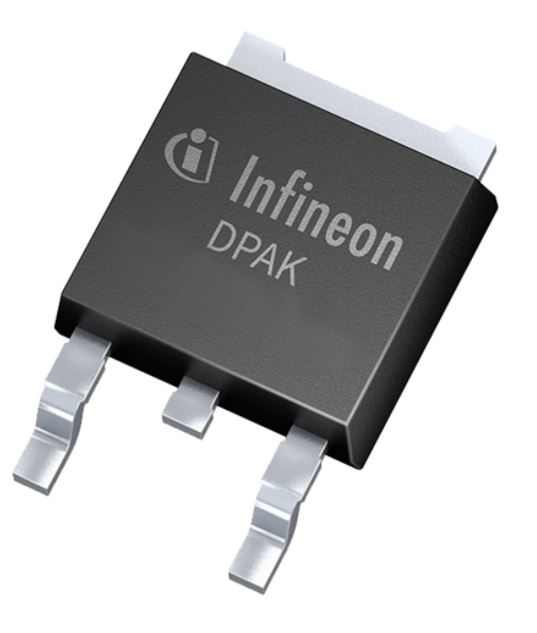

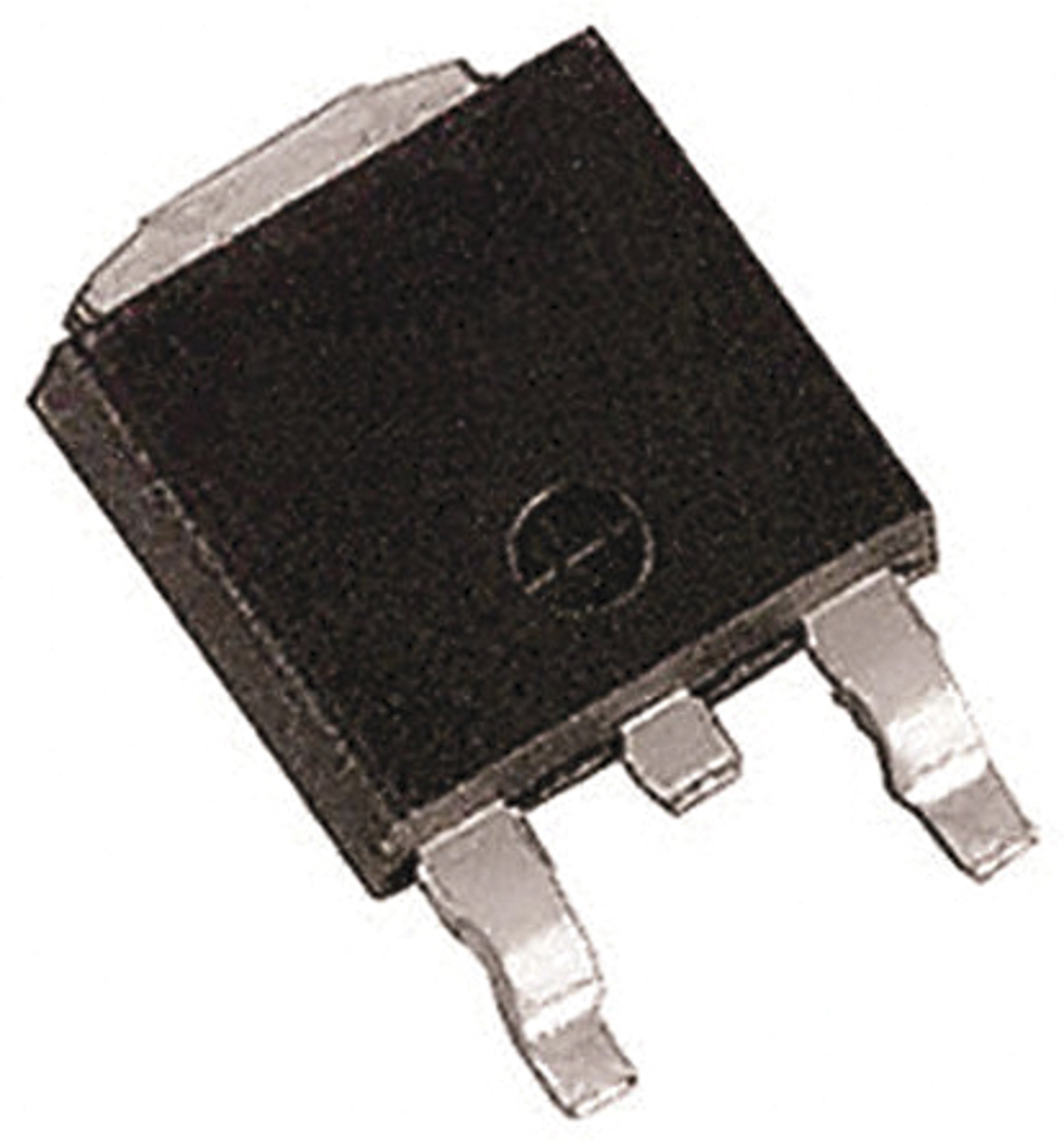

MOSFET N-Ch 80V 90A OptiMOS3 DPAK

IPD053N08N3GATMA1 MOSFET N-Ch 80V 90A OptiMOS3 DPAK
Infineon

Product Information

Maximum Continuous Drain Current:
90 A
Width:
7.36mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
80 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
52 nC @ 10 V
Channel Type:
N
Length:
6.73mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 W
Series:
OptiMOS™ 3
Maximum Gate Source Voltage:
20 V
Height:
2.41mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
9.5 mΩ
Checking for live stock

This is MOSFET N-Ch 80V 90A OptiMOS3 DPAK manufactured by Infineon. The manufacturer part number is IPD053N08N3GATMA1. While 90 a of maximum continuous drain current. Furthermore, the product is 7.36mm wide. The product offers single transistor configuration. It has a maximum of 80 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of dpak (to-252). It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 52 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.73mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 150 w maximum power dissipation. The product optimos™ 3, is a highly preferred choice for users. It features a maximum gate source voltage of 20 v. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 9.5 mω maximum drain source resistance.
