Category:
Power MOSFET
Dimensions:
10.65 x 4.9 x 16.15mm
Maximum Continuous Drain Current:
4 A
Width:
4.9mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
800 V
Maximum Gate Threshold Voltage:
3.5V

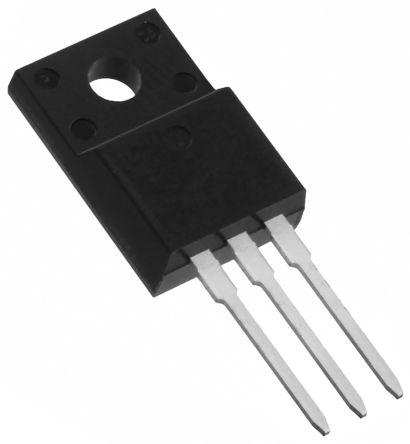

Package Type:
TO-220FP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
10 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
250 pF @ 500 V
Length:
10.65mm
Pin Count:
3 + Tab
Typical Turn-Off Delay Time:
40 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
24 W
Series:
CoolMOS P7
Maximum Gate Source Voltage:
+30 V
Height:
16.15mm
Typical Turn-On Delay Time:
10 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
0.9V
Maximum Drain Source Resistance:
3.1 Ω
