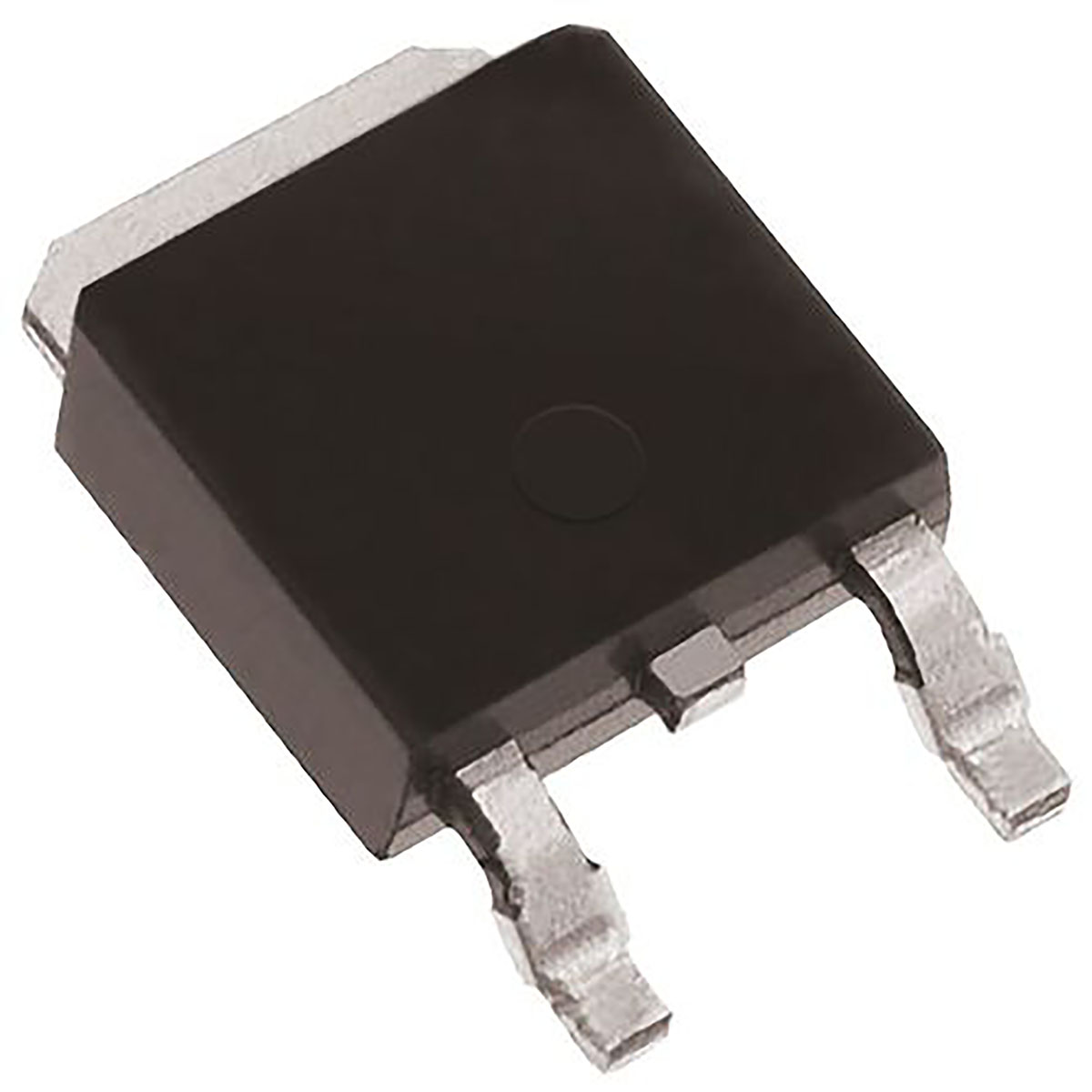

ROHM RSD140P06TL P-channel MOSFET, 14 A, 60 V RSD140P06, 3+Tab-Pin SOT-428

RSD140P06TL ROHM  P-channel MOSFET, 14 A, 60 V RSD140P06, 3+Tab-Pin SOT-428
ROHM

Product Information

Maximum Continuous Drain Current:
14 A
Transistor Material:
Si
Width:
5.5mm
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3V
Package Type:
SOT-428
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
27 nC @ 10 V
Channel Type:
P
Length:
6.5mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
20 W
Series:
RSD140P06
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
2.3mm
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
108 mΩ
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 14 A 60 V RSD140P06 3+Tab-Pin SOT-428 manufactured by ROHM. The manufacturer part number is RSD140P06TL. While 14 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.5mm wide. It has a maximum of 60 v drain source voltage. The product carries 3v of maximum gate threshold voltage. The package is a sort of sot-428. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 27 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.5mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 20 w maximum power dissipation. The product rsd140p06, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 2.3mm. Its forward diode voltage is 1.2v . It provides up to 108 mω maximum drain source resistance.

pdf icon
RSD140P06, 4V Drive P-Channel MOSFET (-60V -14A)(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
