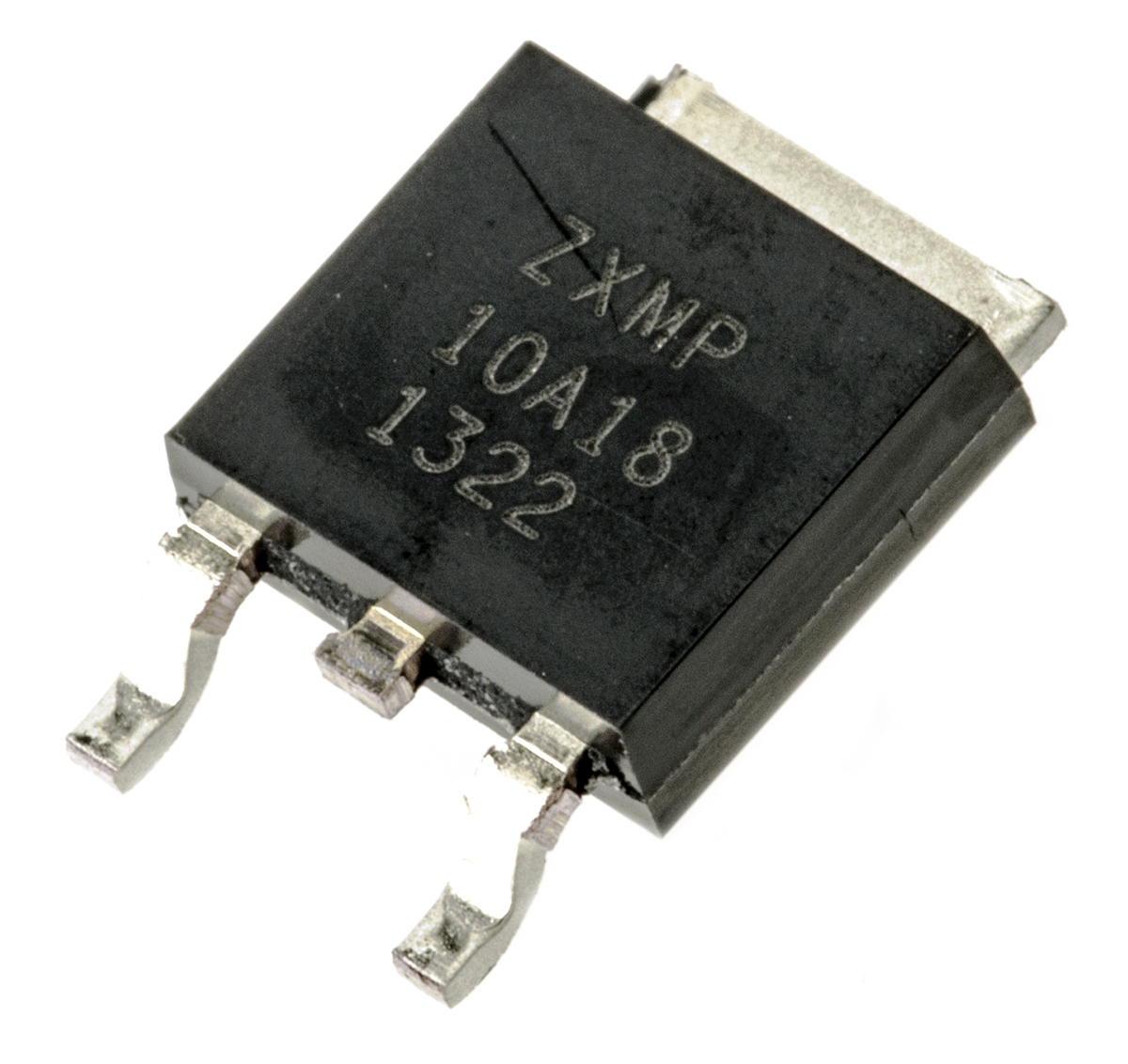

Diodes Inc ZXMP10A18KTC P-channel MOSFET, 5.9 A, 100 V, 3-Pin DPAK

ZXMP10A18KTC Diodes Inc P-channel MOSFET, 5.9 A, 100 V, 3-Pin DPAK
ZXMP10A18KTC
DiodesZetex

Product Information

Maximum Drain Source Voltage:
100 V
Typical Gate Charge @ Vgs:
26.9 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
10.2 W
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
4V
Height:
2.39mm
Width:
6.22mm
Length:
6.73mm
Maximum Drain Source Resistance:
190 mΩ
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
5.9 A
Transistor Material:
Si
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc P-channel MOSFET 5.9 A 100 V 3-Pin DPAK manufactured by DiodesZetex. The manufacturer part number is ZXMP10A18KTC. It has a maximum of 100 v drain source voltage. With a typical gate charge at Vgs includes 26.9 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 10.2 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. The product carries 4v of maximum gate threshold voltage. In addition, the height is 2.39mm. Furthermore, the product is 6.22mm wide. Its accurate length is 6.73mm. It provides up to 190 mω maximum drain source resistance. The package is a sort of dpak (to-252). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 5.9 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
