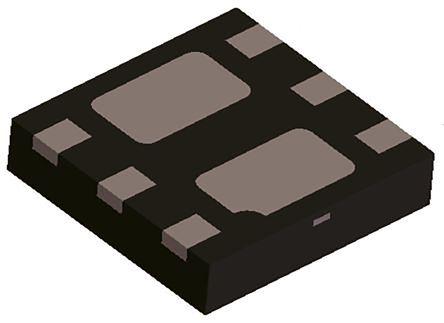

Diodes Inc DMN3025LFDF-7 N-channel MOSFET, 9.9 A, 30 V DMN3025LFDF, 6-Pin U-DFN2020

DMN3025LFDF-7 Diodes Inc  N-channel MOSFET, 9.9 A, 30 V DMN3025LFDF, 6-Pin U-DFN2020
DiodesZetex

Product Information

Maximum Continuous Drain Current:
9.9 A
Width:
2.05mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2V
Package Type:
U-DFN2020
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
13.2 nC @ 15 V
Channel Type:
N
Length:
2.05mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.1 W
Series:
DMN3025LFDF
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.58mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1V
Maximum Drain Source Resistance:
30 mΩ
RoHs Compliant
Checking for live stock

This is Diodes Inc N-channel MOSFET 9.9 A 30 V DMN3025LFDF 6-Pin U-DFN2020 manufactured by DiodesZetex. The manufacturer part number is DMN3025LFDF-7. While 9.9 a of maximum continuous drain current. Furthermore, the product is 2.05mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of u-dfn2020. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 13.2 nc @ 15 v. The product is available in [Cannel Type] channel. Its accurate length is 2.05mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.1 w maximum power dissipation. The product dmn3025lfdf, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.58mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1v . It provides up to 30 mω maximum drain source resistance.
