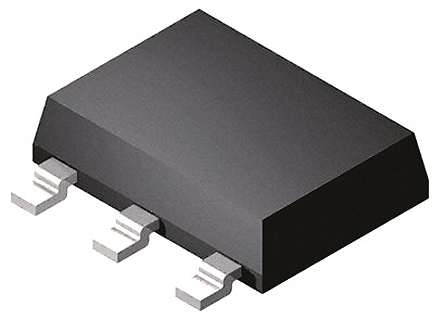

Diodes Inc DMN3032LE-13 N-channel MOSFET, 15.4 A, 30 V, 3+Tab-Pin SOT-223

DMN3032LE-13 Diodes Inc N-channel MOSFET, 15.4 A, 30 V, 3+Tab-Pin SOT-223
DiodesZetex

Product Information

Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
11.3 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.8 W
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
2V
Height:
1.65mm
Width:
3.55mm
Length:
6.55mm
Maximum Drain Source Resistance:
35 mΩ
Package Type:
SOT-223
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
15.4 A
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc N-channel MOSFET 15.4 A 30 V 3+Tab-Pin SOT-223 manufactured by DiodesZetex. The manufacturer part number is DMN3032LE-13. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 11.3 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1.8 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. The product carries 2v of maximum gate threshold voltage. In addition, the height is 1.65mm. Furthermore, the product is 3.55mm wide. Its accurate length is 6.55mm. It provides up to 35 mω maximum drain source resistance. The package is a sort of sot-223. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 15.4 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
