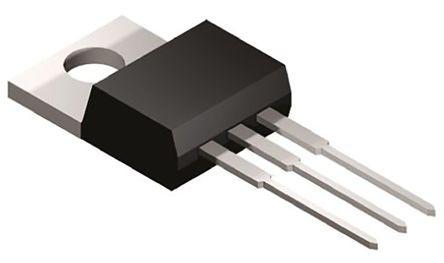

Fairchild FCP7N60 N-channel MOSFET, 7 A, 600 V SuperFET, 3-Pin TO-220AB

FCP7N60 Fairchild N-channel MOSFET, 7 A, 600 V SuperFET, 3-Pin TO-220AB
FCP7N60
Fairchild Semiconductor

Product Information

Maximum Continuous Drain Current:
7 A
Transistor Material:
Si
Width:
4.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
23 nC @ 10 V
Channel Type:
N
Length:
10.1mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
83 W
Series:
SuperFET
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
9.4mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
600 mΩ
RoHs Compliant
Checking for live stock

This is Fairchild N-channel MOSFET 7 A 600 V SuperFET 3-Pin TO-220AB manufactured by Fairchild Semiconductor. The manufacturer part number is FCP7N60. While 7 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.7mm wide. The product offers single transistor configuration. It has a maximum of 600 v drain source voltage. The package is a sort of to-220ab. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 23 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.1mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 83 w maximum power dissipation. The product superfet, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 9.4mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 600 mω maximum drain source resistance.
