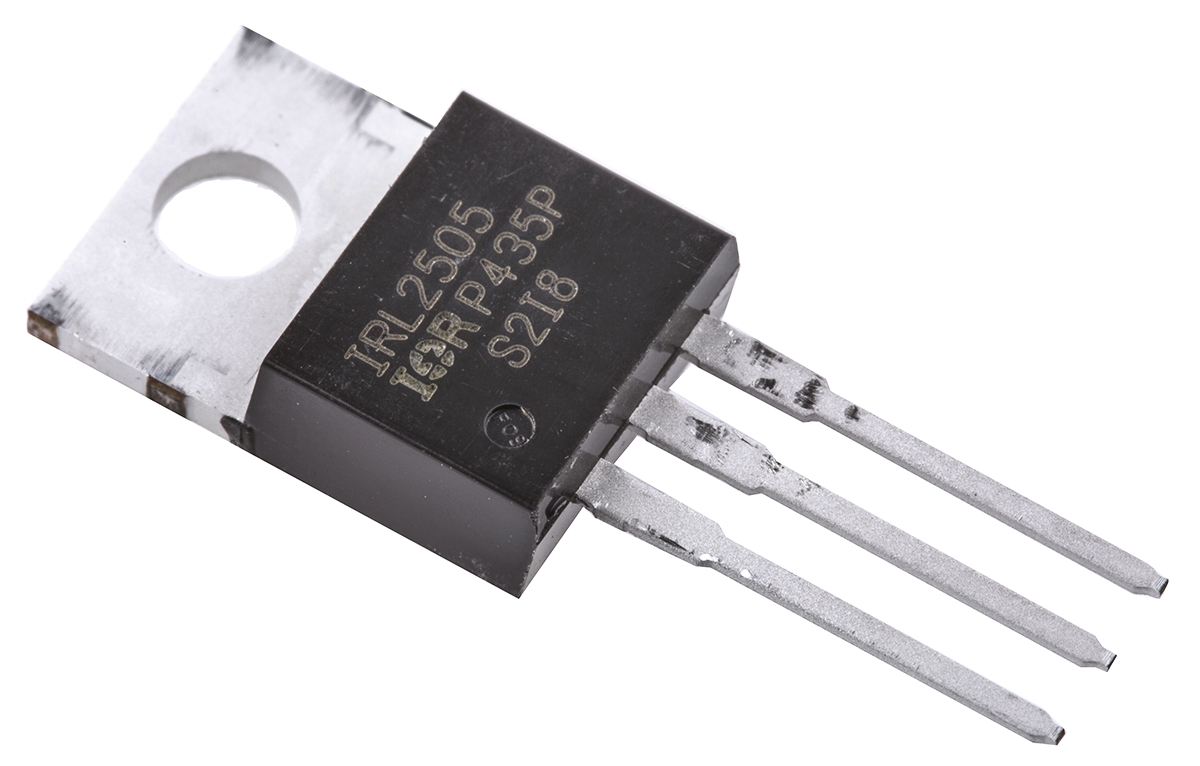

Infineon IRL2505PBF N-channel MOSFET, 104 A, 55 V LogicFET, 3-Pin TO-220AB

Enrgtech Part No: ET14010314
|
Manufacturer Part No:
IRL2505PBF
|
Manufacturer: Infineon

IRL2505PBF Infineon N-channel MOSFET, 104 A, 55 V LogicFET, 3-Pin TO-220AB

Product Information

Maximum Drain Source Resistance Rds:

8mΩ

Forward Voltage Vf:

1.3V

Width:

4.69 mm

Distrelec Product Id:

30284081

Automotive Standard:

Typical Gate Charge Qg @ Vgs:

130nC

Package Type:

TO-220AB

Maximum Continuous Drain Current Id:

104A

Product Type:

MOSFET

Maximum Operating Temperature:

175°C

Maximum Drain Source Voltage Vds:

55V

Channel Type:

Type N

Checking for live stock

The Infineon IRL2505PBF LogicFET is a high-performance N-channel MOSFET designed for efficient power management and high-speed switching. It supports a massive 104A continuous drain current, making it ideal for heavy-duty industrial motor controls. This MOSFET features ultra-low on-resistance to minimise heat generation during operation. Its TO-220AB package ensures excellent thermal dissipation for demanding environments. Logic-level gate drive compatibility allows for direct control from microprocessors. It provides exceptional reliability for advanced power conversion systems.

What Makes Our Product Stand Out?

The ultra-low on-resistance of the Infineon IRL2505PBF MOSFET significantly reduces thermal waste. Logic-level activation allows for seamless integration with low-voltage control circuits.

Extremely high 104A current handling capacity.
Rugged TO-220AB package for superior heat management.

Key Performance Features & Technical Data

Channel Type: N-Channel
Continuous Drain Current (Id): 104A
Drain Source Voltage (Vds): 55V
Maximum On-Resistance (Rds On): 8m$\Omega$
Gate Source Voltage (Vgs): $\pm$16V
Power Dissipation (Pd): 200W
Package Type: TO-220AB
Operating Temperature: -55°C to +175°C.
