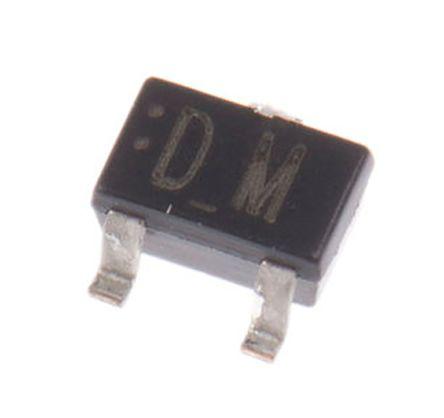

Panasonic MTM232230LBF N-channel MOSFET, 4.5 A, 20 V MTM, 3-Pin SMini3-G1-B

MTM232230LBF Panasonic  N-channel MOSFET, 4.5 A, 20 V MTM, 3-Pin SMini3-G1-B
MTM232230LBF
Panasonic

Product Information

Maximum Drain Source Voltage:
20 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
500 mW
Series:
MTM
Maximum Gate Source Voltage:
-10 V, +10 V
Maximum Gate Threshold Voltage:
1.3V
Height:
0.9mm
Width:
1.25mm
Length:
2mm
Maximum Drain Source Resistance:
40 mΩ
Package Type:
SMini3-G1-B
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
4.5 A
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 4.5 A 20 V MTM 3-Pin SMini3-G1-B manufactured by Panasonic. The manufacturer part number is MTM232230LBF. It has a maximum of 20 v drain source voltage. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 500 mw maximum power dissipation. The product mtm, is a highly preferred choice for users. It features a maximum gate source voltage of -10 v, +10 v. The product carries 1.3v of maximum gate threshold voltage. In addition, the height is 0.9mm. Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. It provides up to 40 mω maximum drain source resistance. The package is a sort of smini3-g1-b. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 4.5 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
