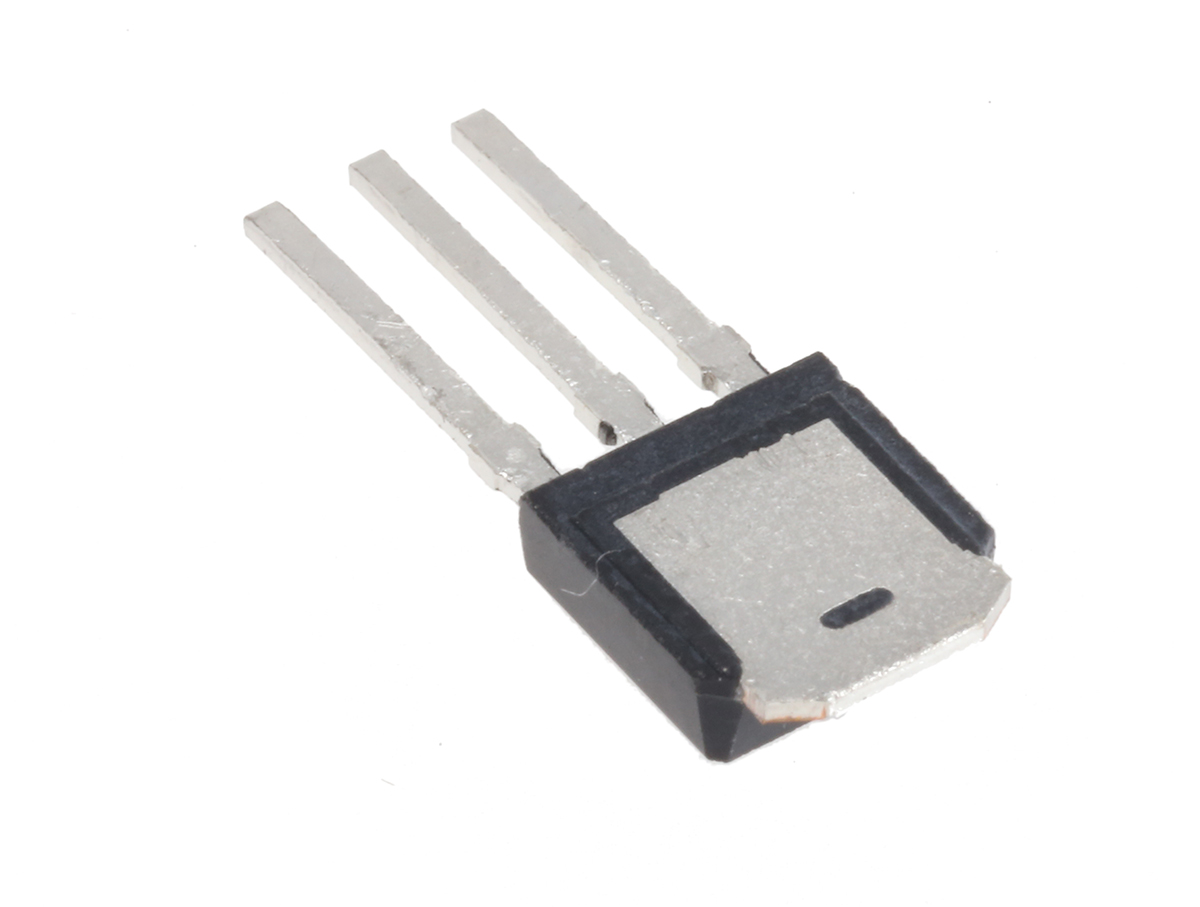

Infineon IRLU8743PBF N-channel MOSFET, 160 A, 30 V HEXFET, 3-Pin IPAK

IRLU8743PBF Infineon  N-channel MOSFET, 160 A, 30 V HEXFET, 3-Pin IPAK
IRLU8743PBF
Infineon

Product Information

Maximum Continuous Drain Current:
160 A
Transistor Material:
Si
Width:
2.39mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2.35V
Package Type:
IPAK (TO-251)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.35V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
39 nC @ 4.5 V
Channel Type:
N
Length:
6.73mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
135 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
6.22mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
3 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 160 A 30 V HEXFET 3-Pin IPAK manufactured by Infineon. The manufacturer part number is IRLU8743PBF. While 160 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 2.39mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2.35v of maximum gate threshold voltage. The package is a sort of ipak (to-251). It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1.35v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 39 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 6.73mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 135 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 6.22mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 3 mω maximum drain source resistance.

pdf icon
IRLR8743PbF, IRLU8743PbF, HEXFET Power MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
