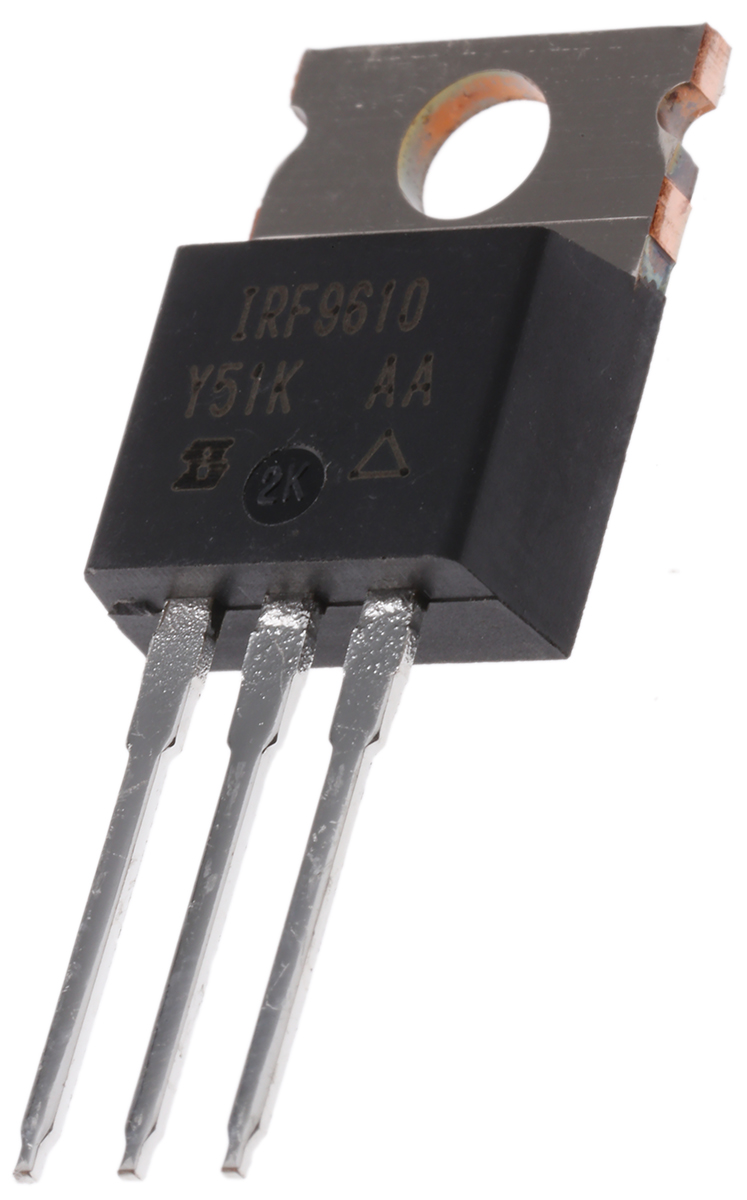

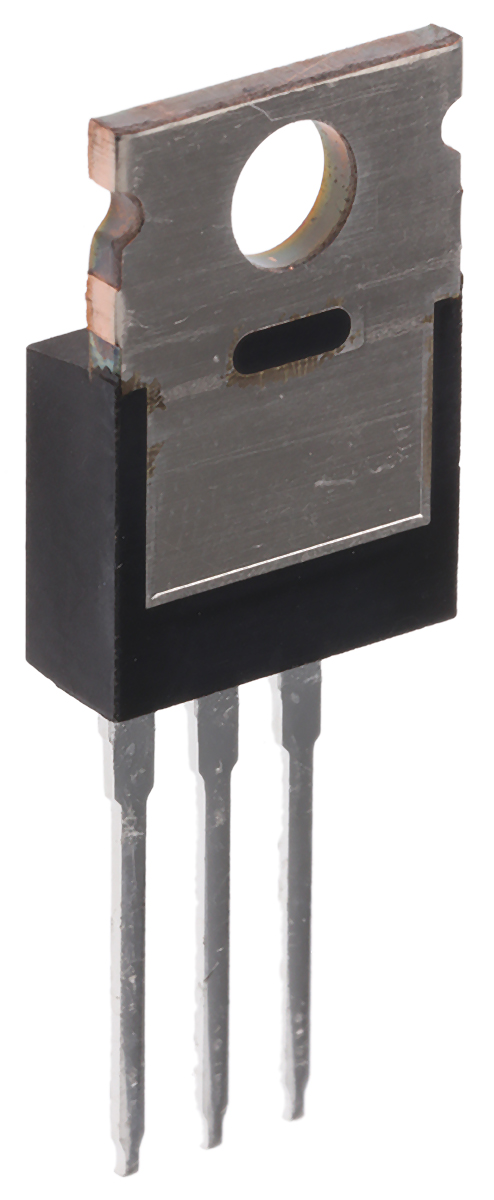

Vishay IRF9610PBF P-channel MOSFET, 1.8 A, 200 V, 3-Pin TO-220AB

IRF9610PBF Vishay  P-channel MOSFET, 1.8 A, 200 V, 3-Pin TO-220AB
IRF9610PBF
Vishay

Product Information

Maximum Continuous Drain Current:
1.8 A
Transistor Material:
Si
Width:
4.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
200 V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
11 nC @ 10 V
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=81591&DisplayLogo=False
Channel Type:
P
Length:
10.41mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
2 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
9.01mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
3 Ω
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 1.8 A 200 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRF9610PBF. While 1.8 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.7mm wide. The product offers single transistor configuration. It has a maximum of 200 v drain source voltage. The package is a sort of to-220ab. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 11 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.41mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 2 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 9.01mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 3 ω maximum drain source resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
