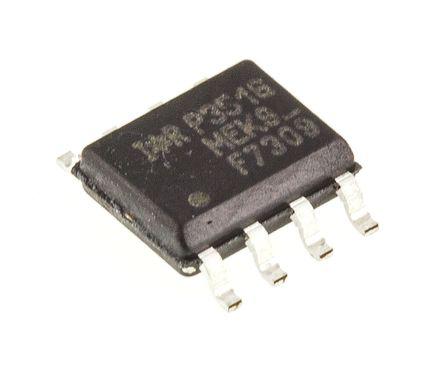

Infineon IRF7309PBF Dual N/P-channel MOSFET, 3 A, 4 A, 30 V HEXFET, 8-Pin SOIC

IRF7309PBF Infineon  Dual N/P-channel MOSFET, 3 A, 4 A, 30 V HEXFET, 8-Pin SOIC
Infineon

Product Information

Maximum Continuous Drain Current:
3 A, 4 A
Transistor Material:
Si
Width:
4mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
1V
Package Type:
SOIC
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
25 nC @ 4.5 V
Channel Type:
N, P
Length:
5mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.4 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.5mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
50 mΩ, 100 mΩ
RoHs Compliant
Checking for live stock

This is Dual N/P-channel MOSFET 3 A 4 A 30 V HEXFET 8-Pin SOIC manufactured by Infineon. The manufacturer part number is IRF7309PBF. While 3 a, 4 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4mm wide. The product offers isolated transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 1v of maximum gate threshold voltage. The package is a sort of soic. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 25 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 5mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.4 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 50 mω, 100 mω maximum drain source resistance.
