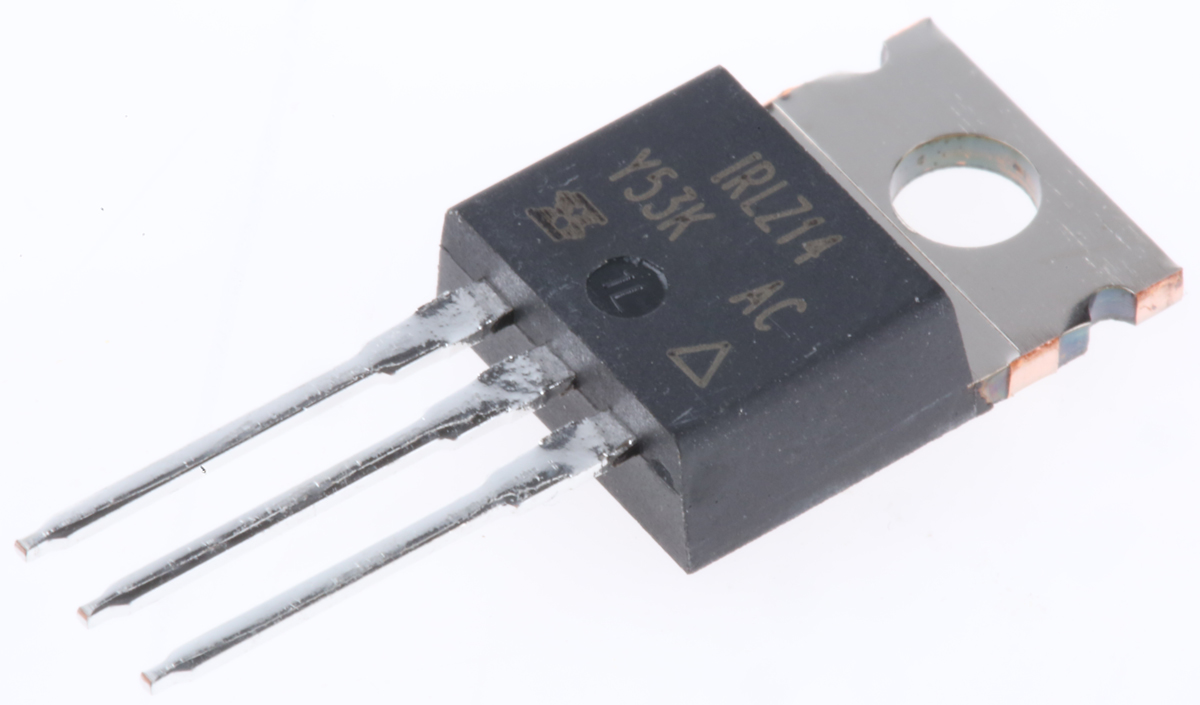

Vishay IRLZ14PBF N-channel MOSFET, 10 A, 60 V, 3-Pin TO-220AB

IRLZ14PBF Vishay N-channel MOSFET, 10 A, 60 V, 3-Pin TO-220AB
IRLZ14PBF
Vishay

Product Information

Maximum Drain Source Voltage:
60 V
Typical Gate Charge @ Vgs:
8.4 nC @ 5 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
43 W
Maximum Gate Source Voltage:
-10 V, +10 V
Height:
9.01mm
Width:
4.7mm
Length:
10.41mm
Minimum Gate Threshold Voltage:
1V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
10 A
Transistor Material:
Si
Maximum Drain Source Resistance:
200 mΩ
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 10 A 60 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRLZ14PBF. It has a maximum of 60 v drain source voltage. With a typical gate charge at Vgs includes 8.4 nc @ 5 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 43 w maximum power dissipation. It features a maximum gate source voltage of -10 v, +10 v. In addition, the height is 9.01mm. Furthermore, the product is 4.7mm wide. Its accurate length is 10.41mm. Whereas its minimum gate threshold voltage includes 1v. The package is a sort of to-220ab. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 10 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. It provides up to 200 mω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
