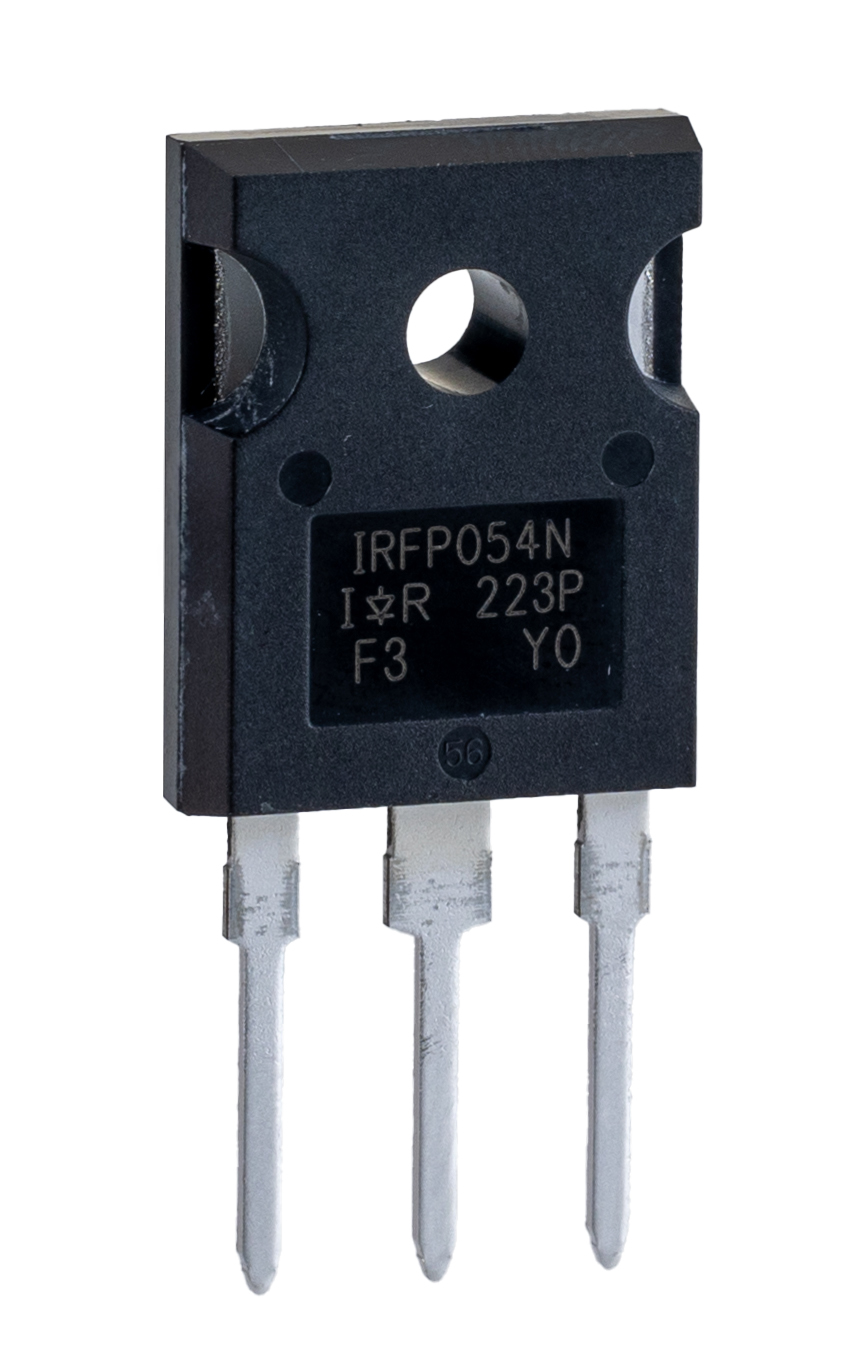

Infineon IRFP054NPBF N-channel MOSFET, 81 A, 55 V HEXFET, 3-Pin TO-247AC

IRFP054NPBF Infineon  N-channel MOSFET, 81 A, 55 V HEXFET, 3-Pin TO-247AC
Infineon

Product Information

Maximum Continuous Drain Current:
81 A
Transistor Material:
Si
Width:
5.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
55 V
Maximum Gate Threshold Voltage:
4V
Package Type:
TO-247AC
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
130 nC @ 10 V
Channel Type:
N
Length:
15.9mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
170 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
20.3mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
12 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 81 A 55 V HEXFET 3-Pin TO-247AC manufactured by Infineon. The manufacturer part number is IRFP054NPBF. While 81 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.3mm wide. The product offers single transistor configuration. It has a maximum of 55 v drain source voltage. The product carries 4v of maximum gate threshold voltage. The package is a sort of to-247ac. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 130 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 15.9mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 170 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 20.3mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 12 mω maximum drain source resistance.
