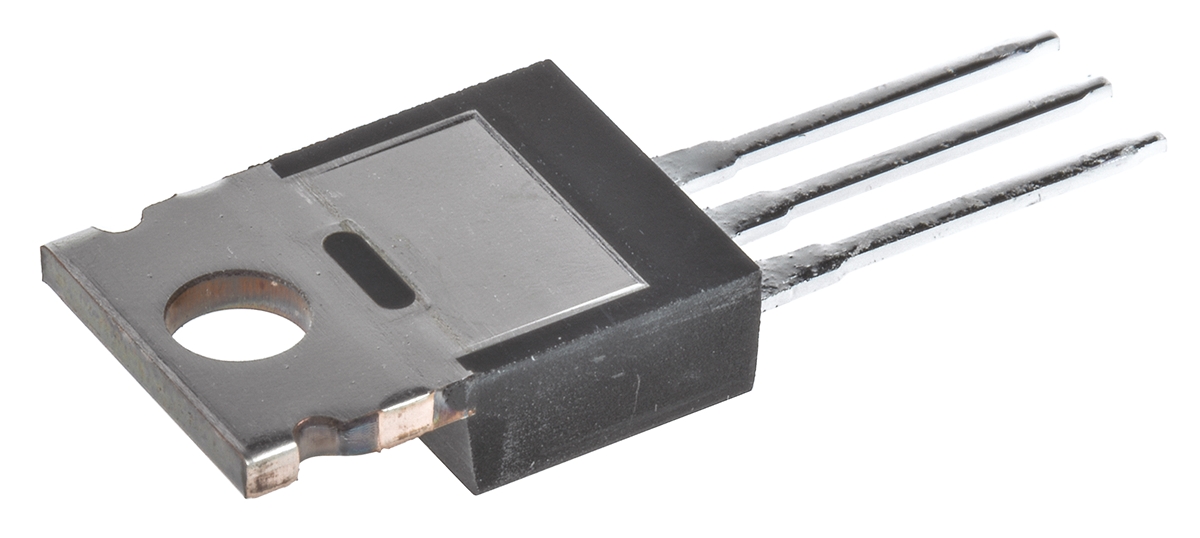

Vishay IRF540PBF N-channel MOSFET, 28 A, 100 V, 3-Pin TO-220AB

IRF540PBF Vishay N-channel MOSFET, 28 A, 100 V, 3-Pin TO-220AB
IRF540PBF
Vishay

Product Information

Maximum Continuous Drain Current:
28 A
Transistor Material:
Si
Width:
4.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
72 nC @ 10 V
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=84519&DisplayLogo=False
Channel Type:
N
Length:
10.41mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
150 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
9.01mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
77 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 28 A 100 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRF540PBF. While 28 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.7mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The package is a sort of to-220ab. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 72 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.41mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 150 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 9.01mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 77 mω maximum drain source resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IRF540PBF Internationally to many countries around the world.
Yes. You can also search IRF540PBF on website for other similar products.
We accept all major payment methods for all products including ET13822641. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13822641 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13822641.
You can order Vishay brand products with IRF540PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay IRF540PBF N-channel MOSFET, 28 A, 100 V, 3-Pin TO-220AB. You can also check on our website or by contacting our customer support team for further order details on Vishay IRF540PBF N-channel MOSFET, 28 A, 100 V, 3-Pin TO-220AB.
