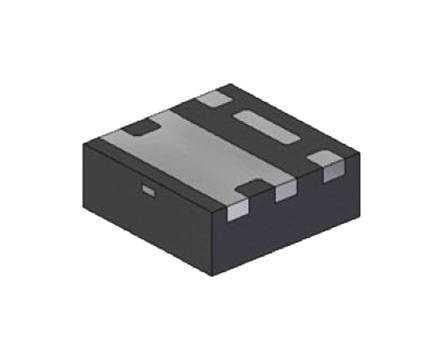

Diodes Inc DMP4047LFDE-7 P-channel MOSFET, 6 A, 40 V, 6-Pin U-DFN2020

DMP4047LFDE-7 Diodes Inc P-channel MOSFET, 6 A, 40 V, 6-Pin U-DFN2020
DiodesZetex

Product Information

Maximum Drain Source Voltage:
40 V
Typical Gate Charge @ Vgs:
23.2 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.1 W
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
2.2V
Height:
0.58mm
Width:
2.05mm
Length:
2.05mm
Maximum Drain Source Resistance:
50 mΩ
Package Type:
U-DFN2020
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
6 A
Transistor Material:
Si
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc P-channel MOSFET 6 A 40 V 6-Pin U-DFN2020 manufactured by DiodesZetex. The manufacturer part number is DMP4047LFDE-7. It has a maximum of 40 v drain source voltage. With a typical gate charge at Vgs includes 23.2 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.1 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. The product carries 2.2v of maximum gate threshold voltage. In addition, the height is 0.58mm. Furthermore, the product is 2.05mm wide. Its accurate length is 2.05mm. It provides up to 50 mω maximum drain source resistance. The package is a sort of u-dfn2020. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 6 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers single transistor configuration.
