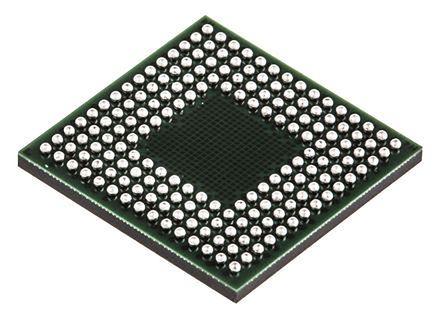

This is 32bit RX Microcontroller MCU 100MHz 768 kB Flash 176-Pin LFBGA manufactured by Renesas Electronics. The manufacturer part number is R5F563NADDBG#U0. The given dimensions of the product include 13 x 13 x 0.95mm. The product integrates 2 USB channels. Furthermore, the product is 13mm wide. In addition, 768 kb is the program memory size. The product has typical 128 kb RAM size. Additionally, it is composed of 8, 21 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of lfbga. It features 100mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family rx63n. On the other hand, the rx is the device core. The ADC has 10 bit, 12 bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 1(18 x 16 bit), 1(8 x 8 bit). It contains 2 ADC units. It contains 176 pins. The product is available in surface mount configuration. Its accurate length is 13mm. In addition, the height is 0.95mm. It has 2.7 → 3.6 v of typical operating supply voltage. The ADCs included 1(21 x 12 bit), 1(8 x 10 bit). Whereas, the minimum operating temperature of the product is -40 °c.
For more information please check the datasheets.
