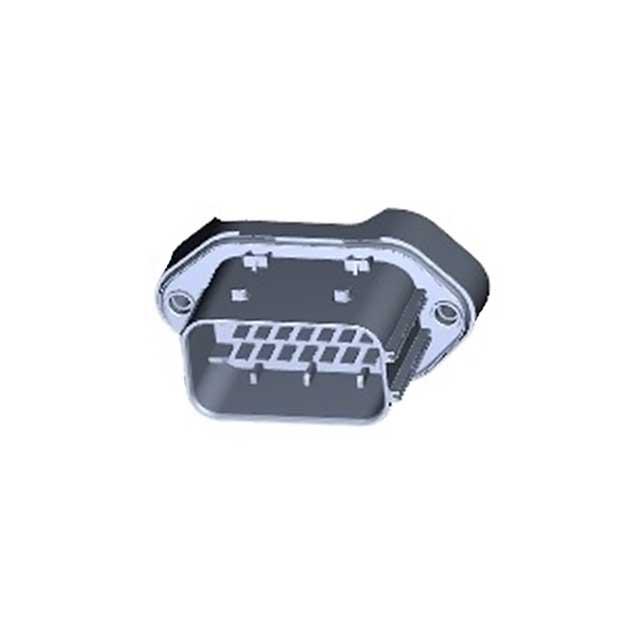

TE Connectivity Deutsch Connectors 1534238-1

1534238-1 TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors

Product Information

Contact Finish - Mating:
Silver
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
21
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
1.738" (44.15mm)
Voltage Rating:
-
REACH Status:
Vendor Undefined
edacadModel:
1534238-1 Models
Applications:
-
Number of Rows:
3
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2311471
Insulation Color:
Black
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.217" (5.51mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.183" (4.65mm)
Pitch - Mating:
0.197" (5.00mm)
Ingress Protection:
-
Features:
Board Guide, Mating Flange
Mounting Type:
Through Hole
Series:
LEAVYSEAL
Contact Type:
Tab
Contact Material:
Copper Alloy
Base Product Number:
1534238
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is 1534238-1. It has nice contact finishing of silver. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 21. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 1.738" (44.15mm) of insulation height. In addition, it is vendor undefined. It comes in 3 of rows. In addition, black is the insulation color of the product. It has a typical rectangular shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in bulk package . It carries 0.217" (5.51mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 11 weeks standard lead time. 0.183" (4.65mm) is the given possible contact length (post) values. It has 0.197" (5.00mm) of pitch-mating value. The splendid features of the product include board guide, mating flange. The product is available in through hole configuration. The product leavyseal, is a highly preferred choice for users. It has typical contact type of tab. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 1534238, a base product number of the product. The product is designated with the ear99 code number.
