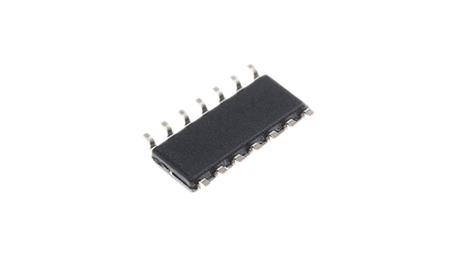

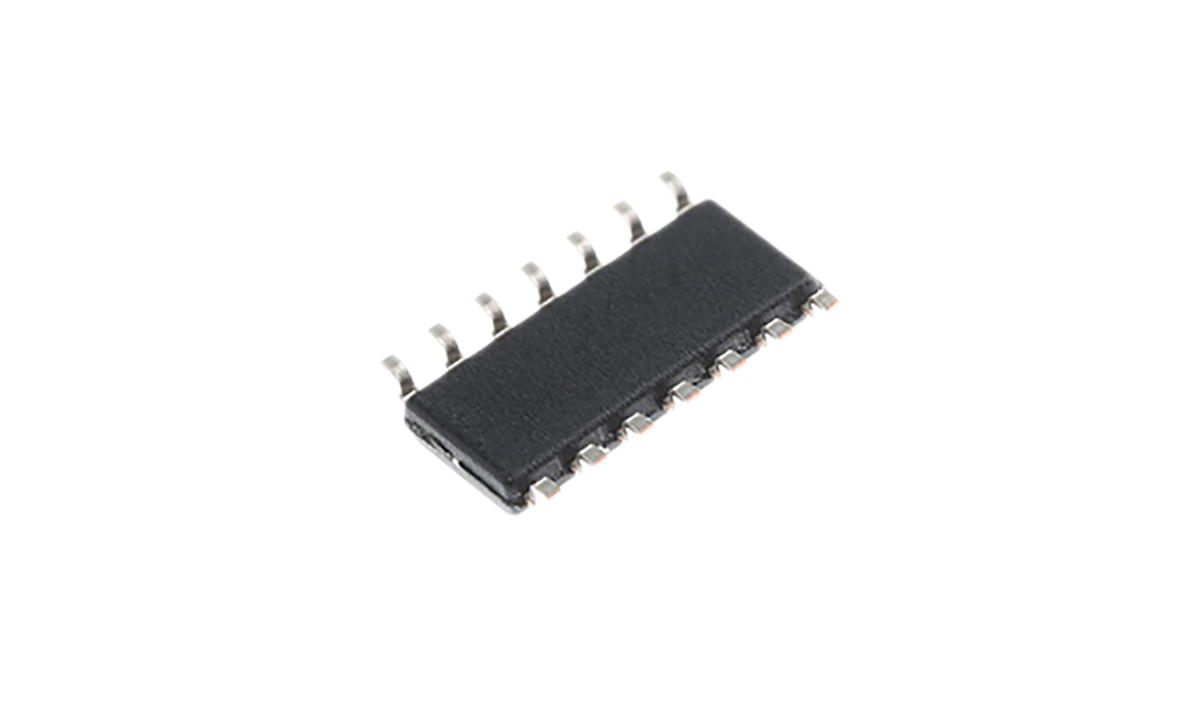

This is NXP Quad 2-Input NAND Schmitt Trigger Logic Gate 4.5 → 5.5 V 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74HCT132D,652. The given dimensions of the product include 8.75 x 4 x 1.45mm. The logic family is hct. Furthermore, the product is 4mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 4ma of max. low level output current. While a -4ma of maximum high level output current. It provides up to 33 ns @ 4.5 v maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. The package is a sort of soic. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 8.75mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nand. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. It carries 4 elements. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
