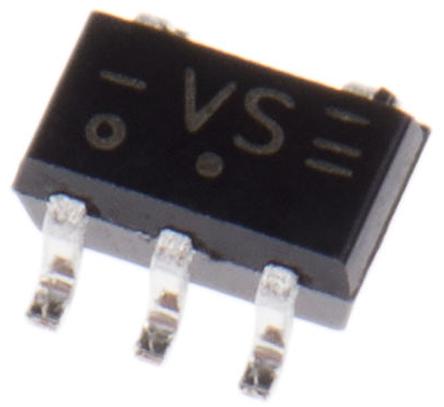

NXP 74HC1G00GW,125, 2-Input NAND Logic Gate, 2 → 6 V, 5-Pin TSSOP

74HC1G00GW-125 NXP 74HC1G00GW,125, 2-Input NAND Logic Gate, 2 → 6 V, 5-Pin TSSOP
Nexperia

Product Information

Dimensions:
2.25 x 1.35 x 1mm
Logic Family:
HC
Width:
1.35mm
Input Type:
CMOS
Maximum Low Level Output Current:
2.6mA
Maximum High Level Output Current:
-2.6mA
Maximum Propagation Delay Time @ Maximum CL:
135ns
Minimum Operating Supply Voltage:
2 V
Output Type:
Current
Package Type:
TSSOP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
2.25mm
Pin Count:
5
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
NAND
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
1
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is NXP 2-Input NAND Logic Gate 2 → 6 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74HC1G00GW,125. The given dimensions of the product include 2.25 x 1.35 x 1mm. The logic family is hc. Furthermore, the product is 1.35mm wide. It carries cmos input type. On the other hand, it is featured with 2.6ma of max. low level output current. While a -2.6ma of maximum high level output current. It provides up to 135ns maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has acurrent output. The package is a sort of tssop. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 2.25mm. It contains 5 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nand. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 1 elements. Features 50pf of propagation delay test condition.
