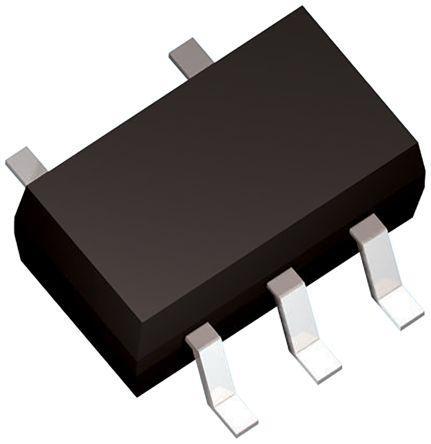

Toshiba TC7S08F,LF(T, 2-Input AND Logic Gate, 5-Pin SSOP

TC7S08F-LF-T Toshiba TC7S08F,LF(T, 2-Input AND Logic Gate, 5-Pin SSOP
Toshiba

Product Information

Dimensions:
2 x 1.25 x 0.9mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
2 V dc
Minimum Operating Temperature:
-40 °C
Logic Function:
AND
Output Type:
Digital
Height:
0.9mm
Width:
1.25mm
Length:
2mm
Package Type:
SSOP
Logic Family:
CMOS
Input Type:
CMOS
Maximum Propagation Delay Time @ Maximum CL:
125 ns @ 50 pF
Maximum Operating Supply Voltage:
6 V dc
Number of Elements:
1
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 2-Input AND Logic Gate 5-Pin SSOP manufactured by Toshiba. The manufacturer part number is TC7S08F,LF(T. The given dimensions of the product include 2 x 1.25 x 0.9mm. The product is available in surface mount configuration. It contains 2 inputs per gate . While its minimum operating supply voltage is 2 v dc. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes and. Furthermore, it has adigital output. In addition, the height is 0.9mm. Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. The package is a sort of ssop. The logic family is cmos. It carries cmos input type. It provides up to 125 ns @ 50 pf maximum propagation delay time. It has 6 v dc maximum operating supply voltage. It carries 1 elements. It has a maximum operating temperature of +85 °c. It contains 5 pins. Features 50pf of propagation delay test condition.

pdf icon
TC7S08F/FU Single 2-input AND Gate Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
