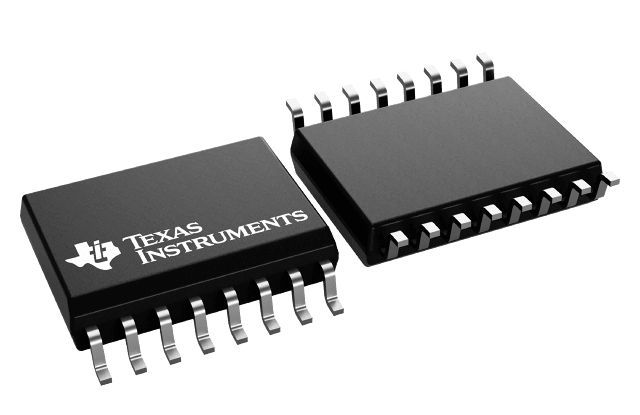

Texas Instruments UCC21750DW

UCC21750DW Texas Instruments
Texas Instruments

Product Information

Output Current:
20 mA
Logic Type:
PWM
Number of Drivers:
2
Package Type:
SOIC
Supply Voltage:
5V
Pin Count:
16 Pin
Fall Time:
27ns
Voltage - Output Supply:
13V ~ 33V
Base Part Number:
UCC217
Detailed Description:
10A Gate Driver Capacitive Coupling 5700Vrms 1 Channel 16-SOIC
Current - Output High, Low:
10A, 10A
Mounting Type:
Surface Mount
Voltage - Isolation:
5700Vrms
Current - Peak Output:
10A
Rise / Fall Time (Typ):
28ns, 24ns (Max)
Supplier Device Package:
16-SOIC
Manufacturer Standard Lead Time:
6 Weeks
Current - DC Forward (If) (Max):
20mA
Propagation Delay tpLH / tpHL (Max):
90ns, 90ns
Operating Temperature:
-40°C ~ 125°C
Number of Channels:
1
Approval Agency:
UL, VDE
Common Mode Transient Immunity (Min):
150V/ns
Package / Case:
16-SOIC (0.295", 7.50mm Width)
Pulse Width Distortion (Max):
25ns
Technology:
Capacitive Coupling
Manufacturer:
Texas Instruments
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is UCC21750DW. It carries 20 ma output current. The product is a pwm logic type. Number of Drivers equals 2. The package is a sort of soic. Features 5v supply voltage. It contains 16 pin pins. Its fall time is about 27ns . Output supply voltage of 13v ~ 33v. Base Part Number: ucc217. It features 10a gate driver capacitive coupling 5700vrms 1 channel 16-soic. The high and low output current of the product is 10a, 10a. The product is available in surface mount configuration. 5700vrms of isolation voltage. It carries 10a peak current output. The typical rise and fall time of the product is 28ns, 24ns (max). 16-soic is the supplier device package value. It has typical 6 weeks of manufacturer standard lead time. The maximum DC forward current of the product is 20ma. It has a maximum propagation delay of 90ns, 90ns. The product has -40°c ~ 125°c operating temperature range. It is supplied with 1 channels. It is approved by ul, vde. Allows a 150v/ns of minimum common mode transient immunity. Moreover, the product comes in 16-soic (0.295", 7.50mm width). The maximum pulse width distortion is 25ns. This product use capacitive coupling technology. The texas instruments's product offers user-desired applications.
